3D wheel aligner RAVTD3200SP.3

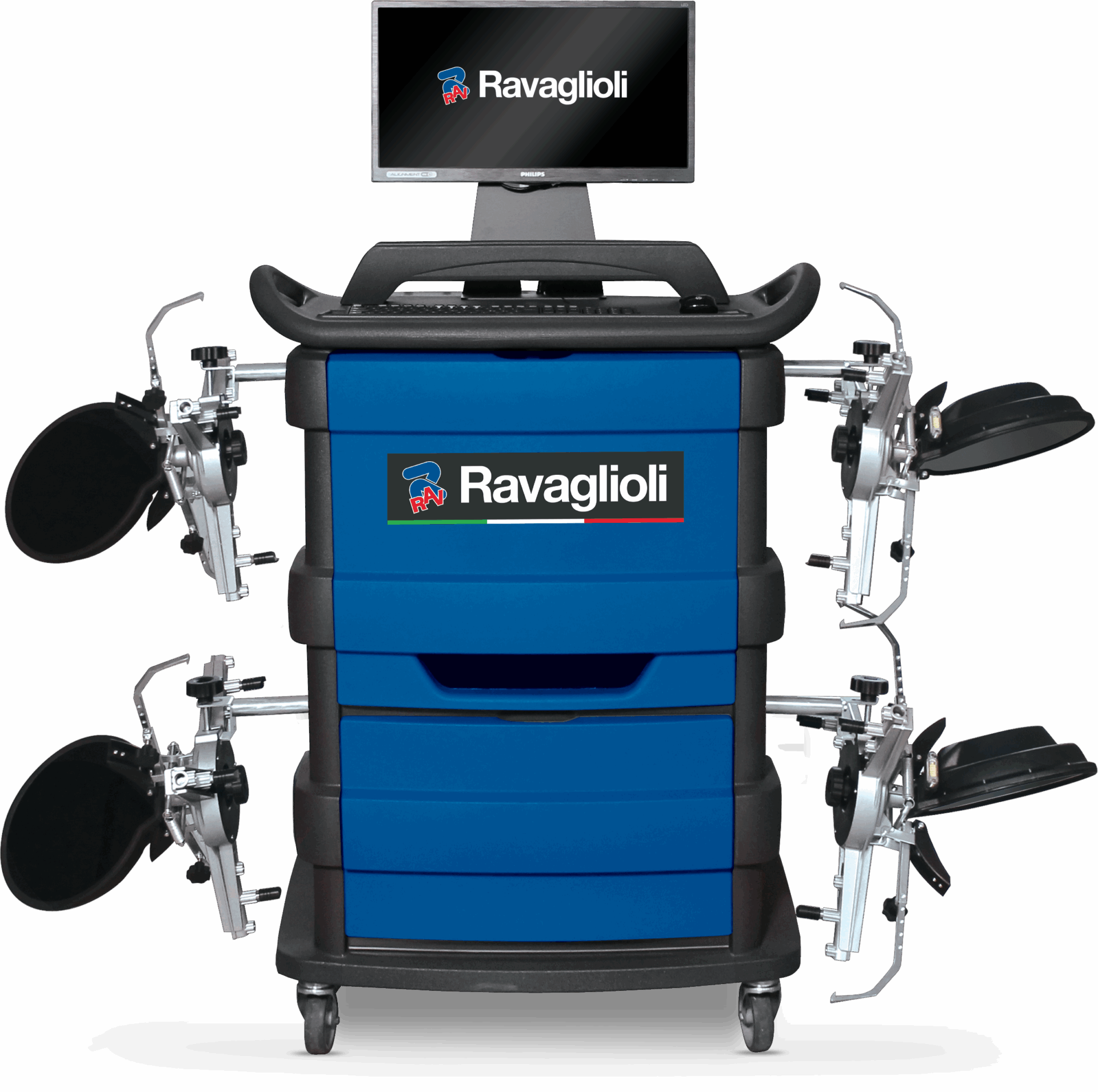

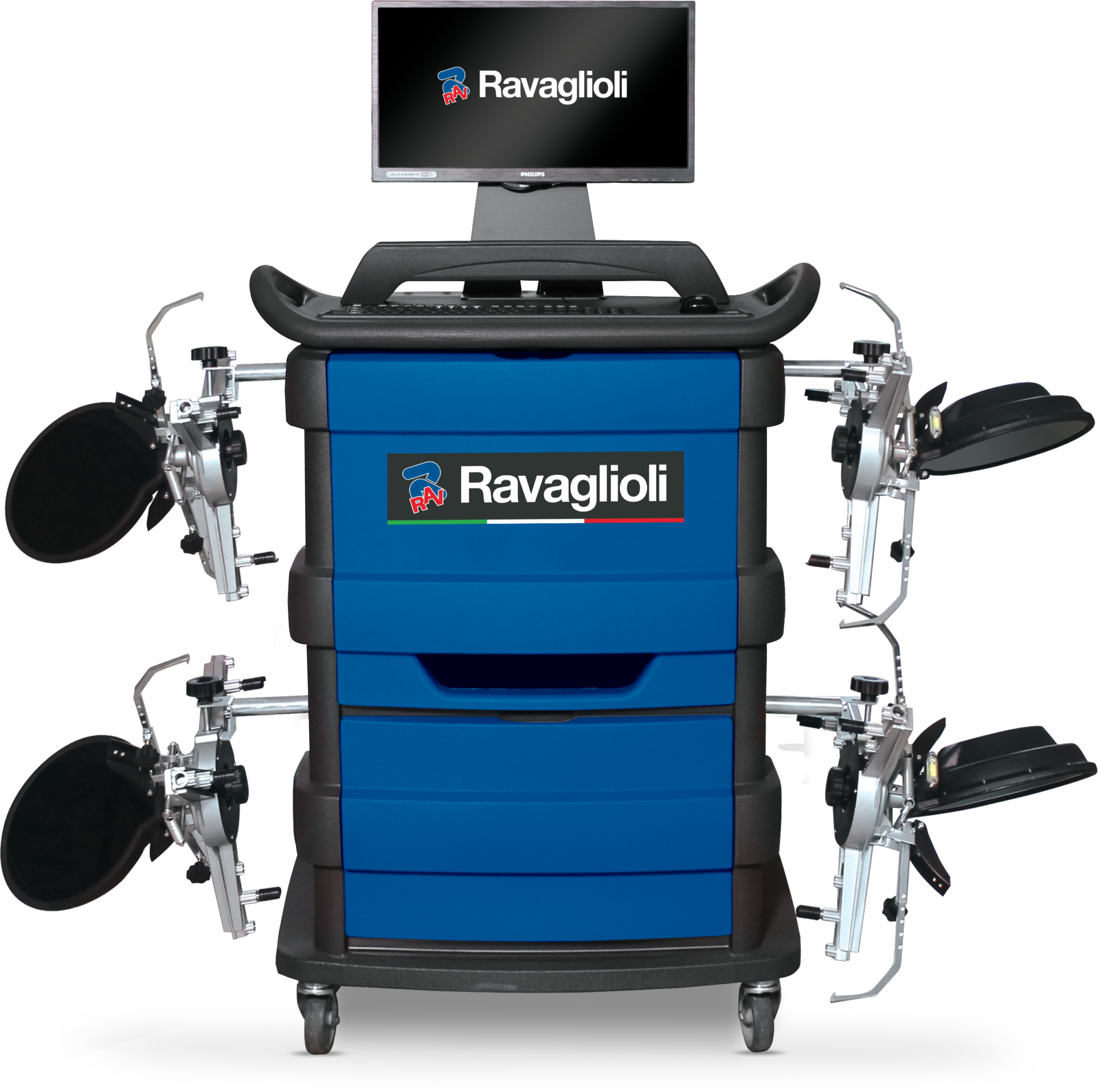

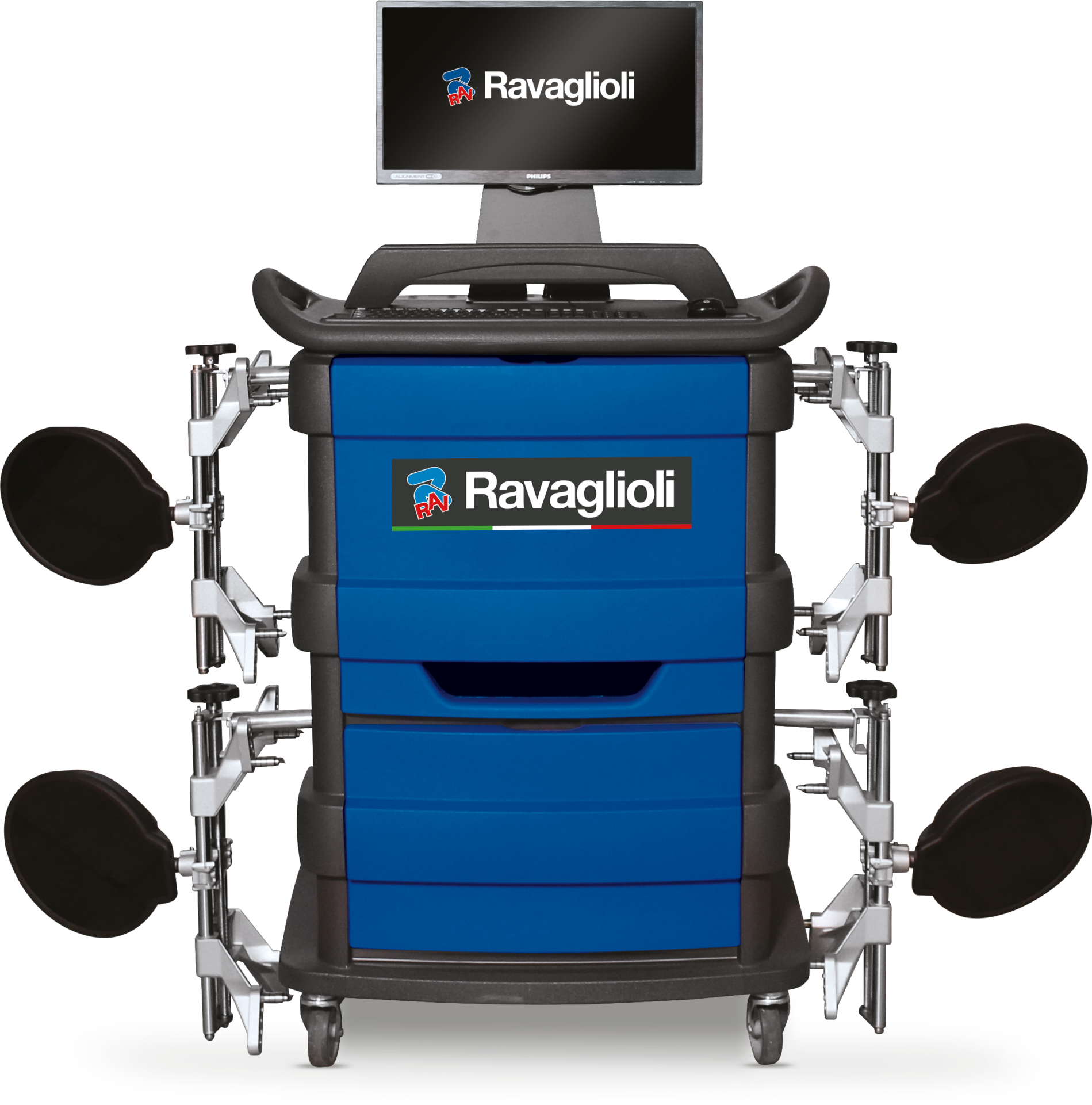

3D wheel aligner with HQ 3D measuring heads and Bluetooth data communication | incl. self-centering 3-point clamps, 22″ TFT display and closed cabinet | Blue (RAL 5005)

MPN: RAV.D32SP.700902
GTIN (EAN): 5063084700902
Category:
Tags: , ,

Share on:

dashicons-media-document

Description

The New Power of 3D Aligners

  • New 3D measuring heads: more compact and better performing
  • Eco Cabinet: cabinet made with low environmental impact material
  • Smart technology: software with updated graphics, intuitive user interface, animations and adjustment aids so work is rapid and effective

The TD3200 series is the second generation of Ravaglioli 3D wheel aligners. Its innovative system of 3D cameras with Bluetooth transmission can be used on different types of lifts thanks to its automatic flatness compensation. Its compact size also makes it suitable for those workshops having limited space.

  • The 3D measuring heads integrated with the lift allow measurements to be taken obstacle-free.
  • Bluetooth communication between the 3D measuring heads and console.
  • More efficient workshop in terms of space and operations:
    • No obstacle – Maximization of the workspace.
    • Fast transmission – Effective even in critical lighting conditions.
    • Minimum effort – Rapid compensation and in little off-centre space.
    • Versatile wheel aligner – One aligner for multiple working bays.

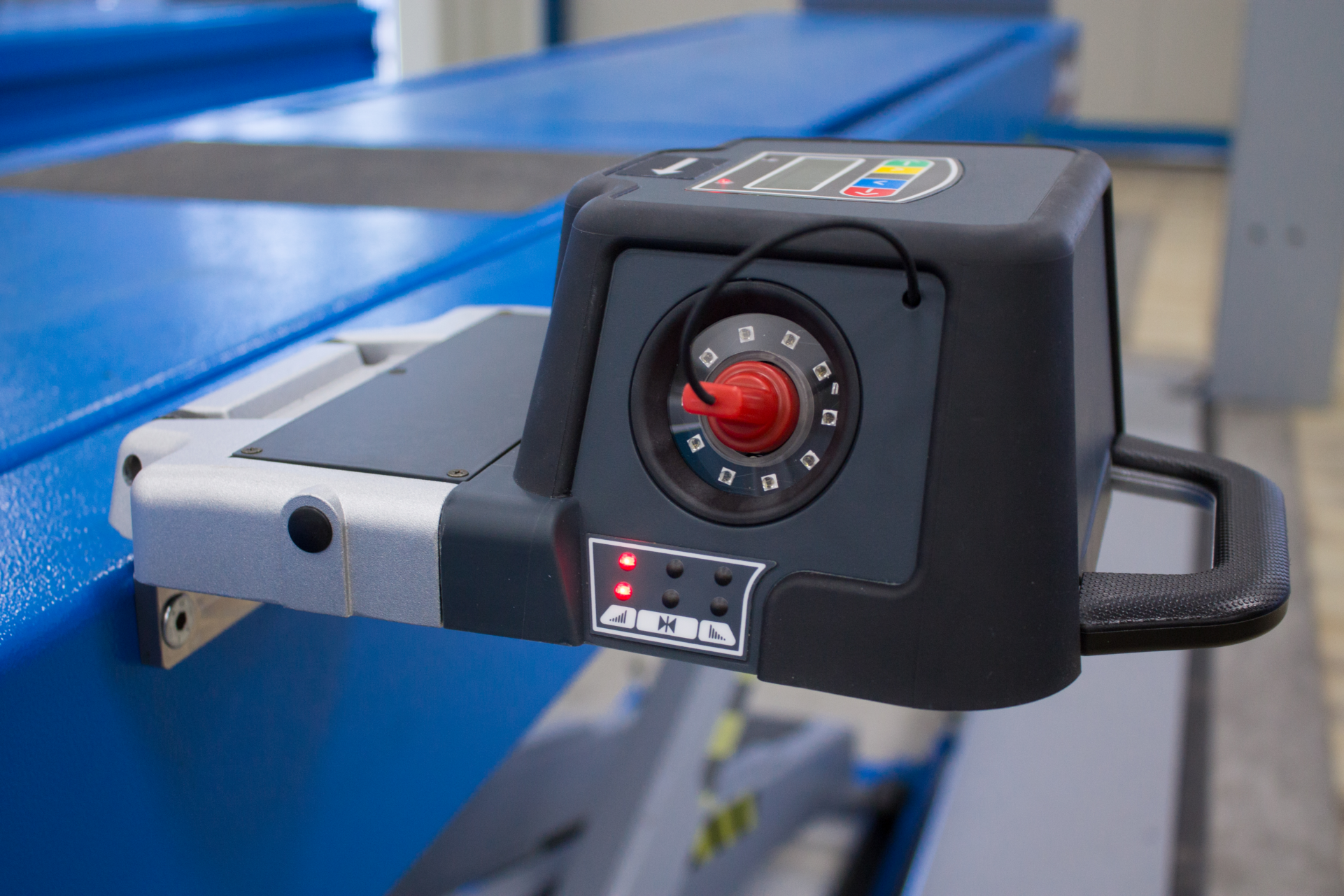

  • Features of the 3D measuring heads:
    • LCD display for essential information.
    • Five keys for software navigation, also remote controllable.
    • Measurement and automatic lift flatness compensation with high resolution cameras.
    • Remote control function.
    • LED repeaters to assist recording.
    • Only one head installation position to measure different wheelbase vehicles.
    • Weight 3 kg.

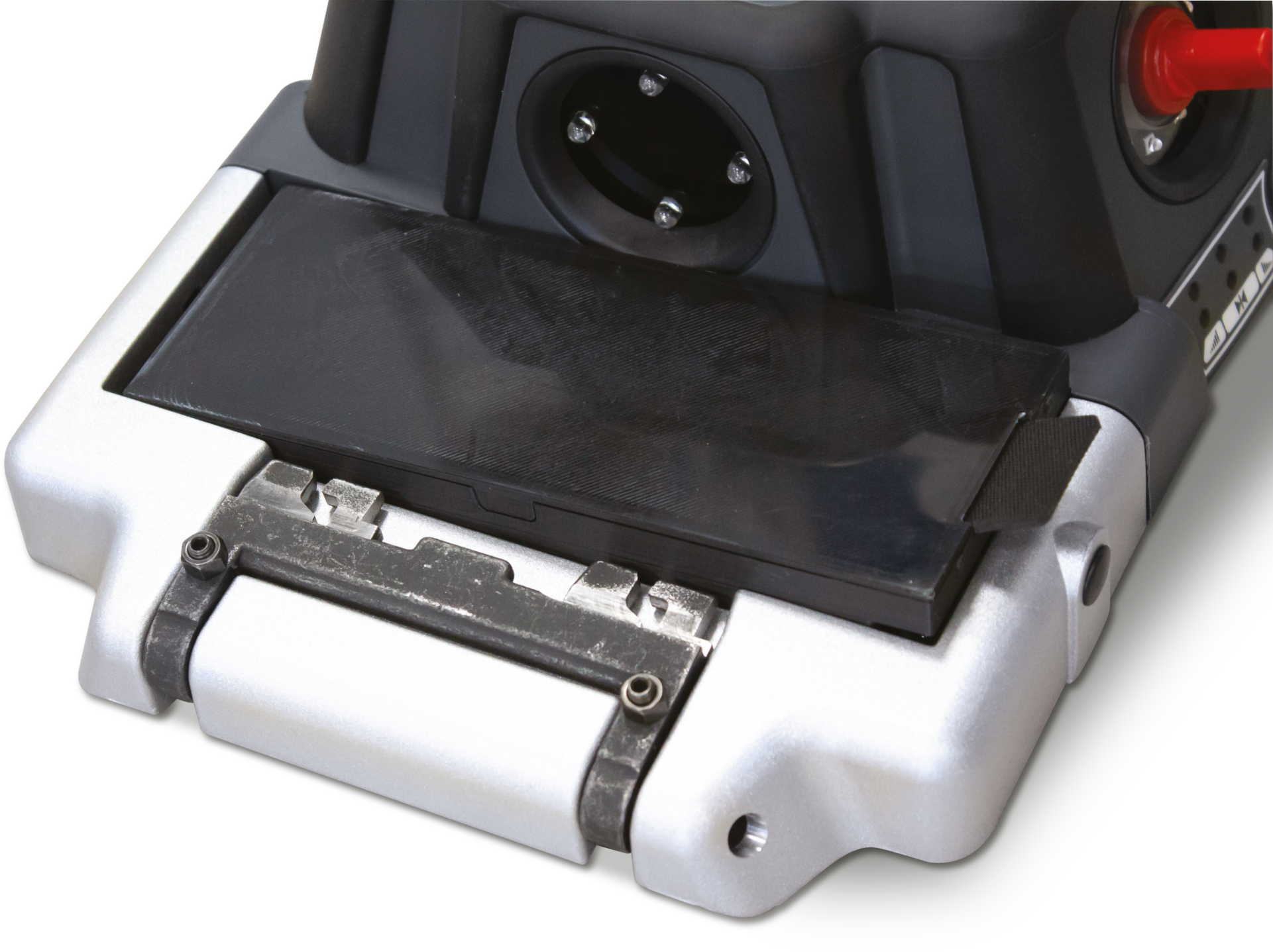

  • Battery replacement with a quick release system.
  • The battery lifetime offers the freedom of working a full day without any interruptions.

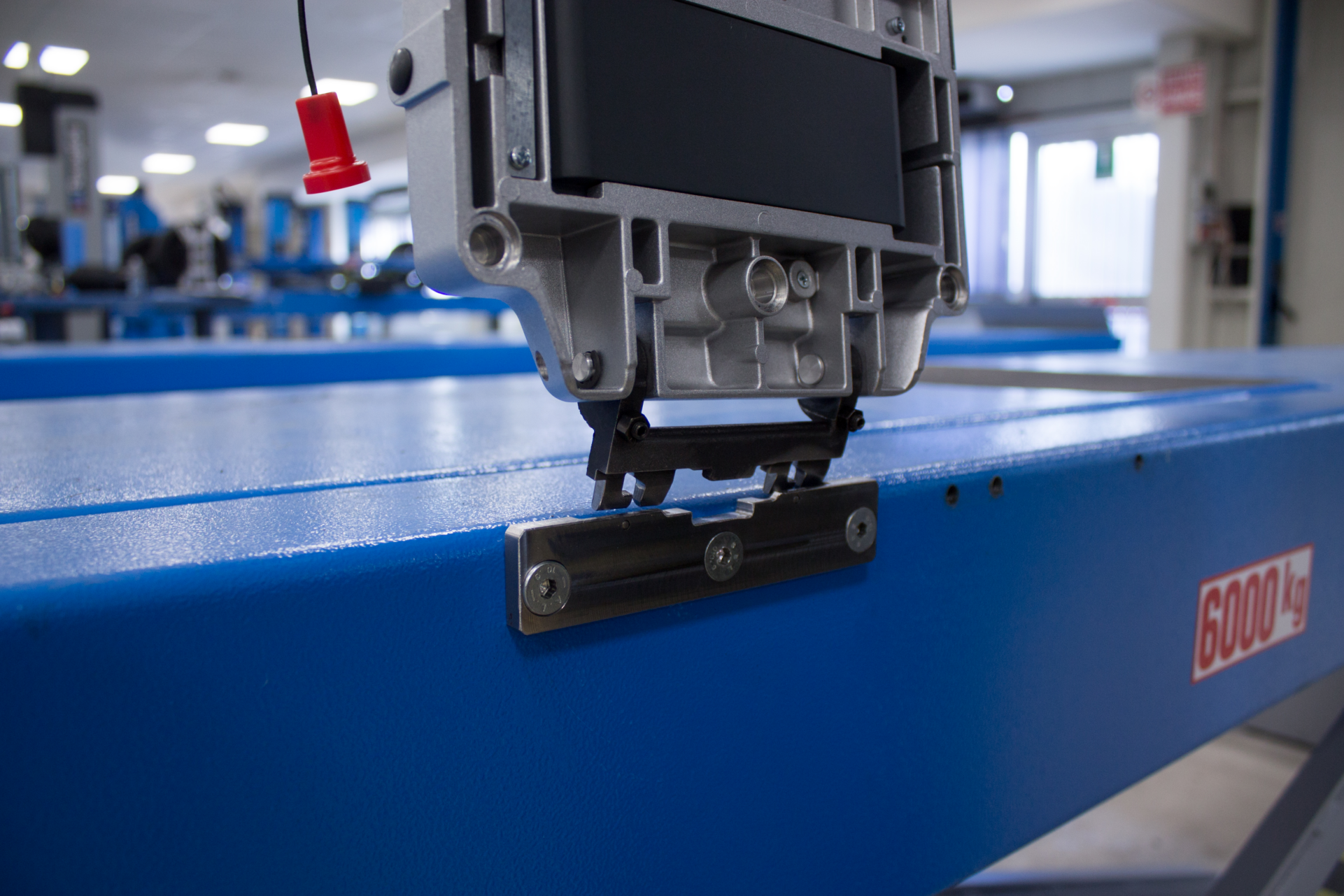

  • Rapid pivoting coupling system to the lift to prevent damage in the case of obstacles in descent.
  • Built-in head with rubber protection and handle with plastic protection.

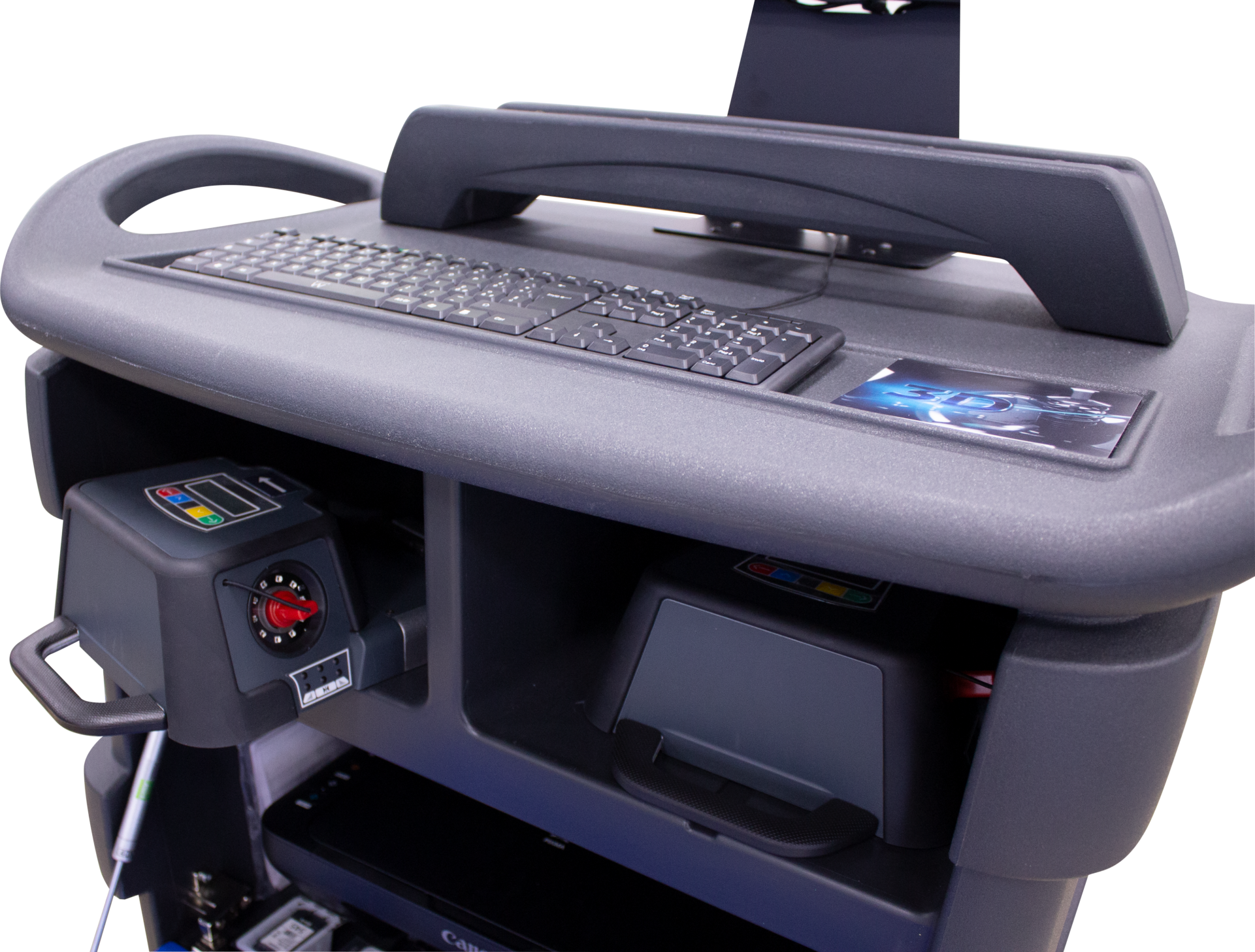

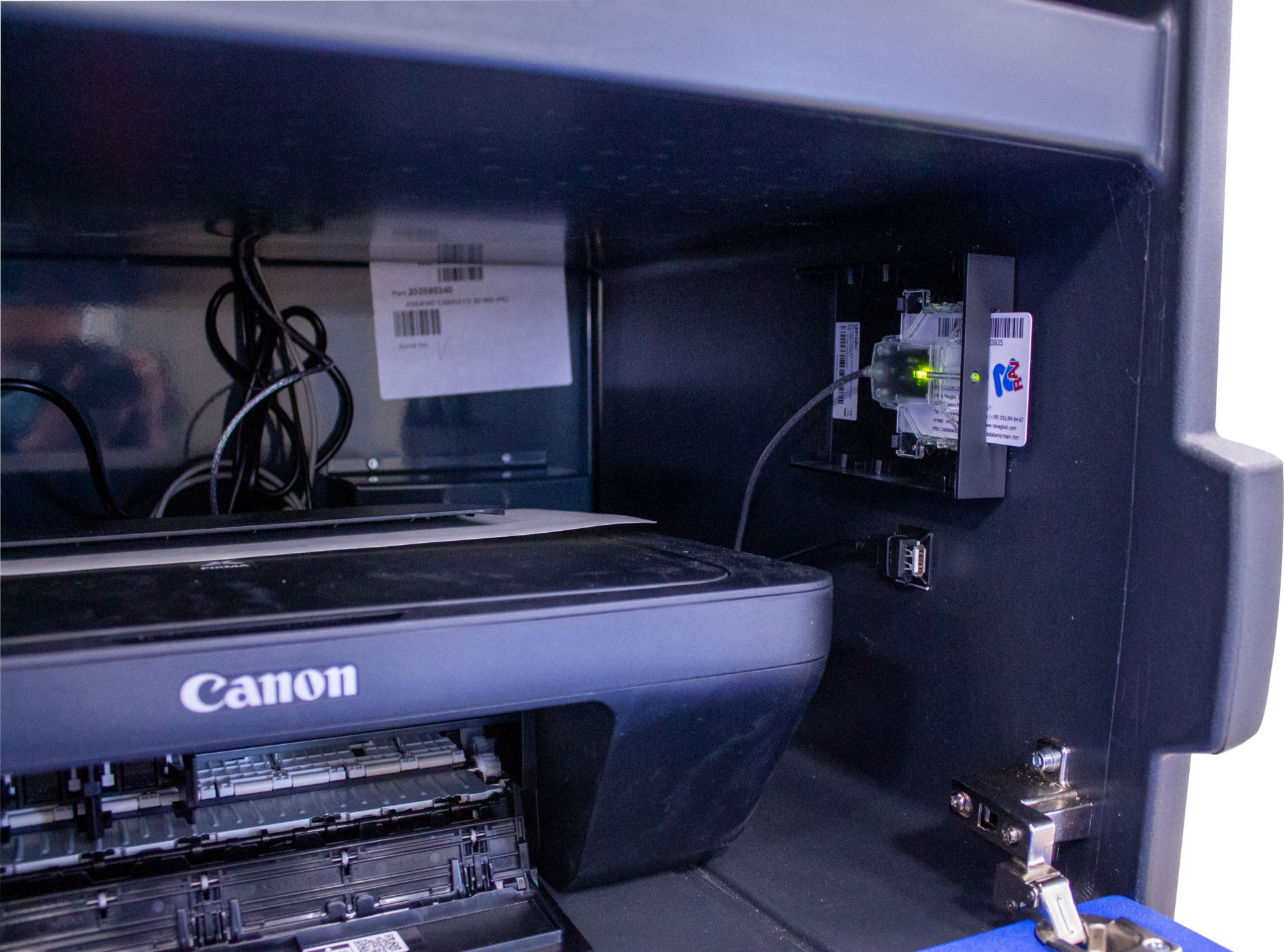

  • Compartments designed to perfectly adapt to the 3D measurement heads without becoming lost or damaged.
  • Management software and simple, intuitive display in Microsoft Windows environment: The high resolution graphics make the user experience simple and intuitive.
  • International data bank with vehicle technical data sheets and possibility to create a customer data bank for adjustment recording.
  • Compatible with TEq-Link and ADAS Shoot&Go.
  • Quick and accurate measurement: The 3D measuring heads instantly read all vehicle angles with maximum precision.

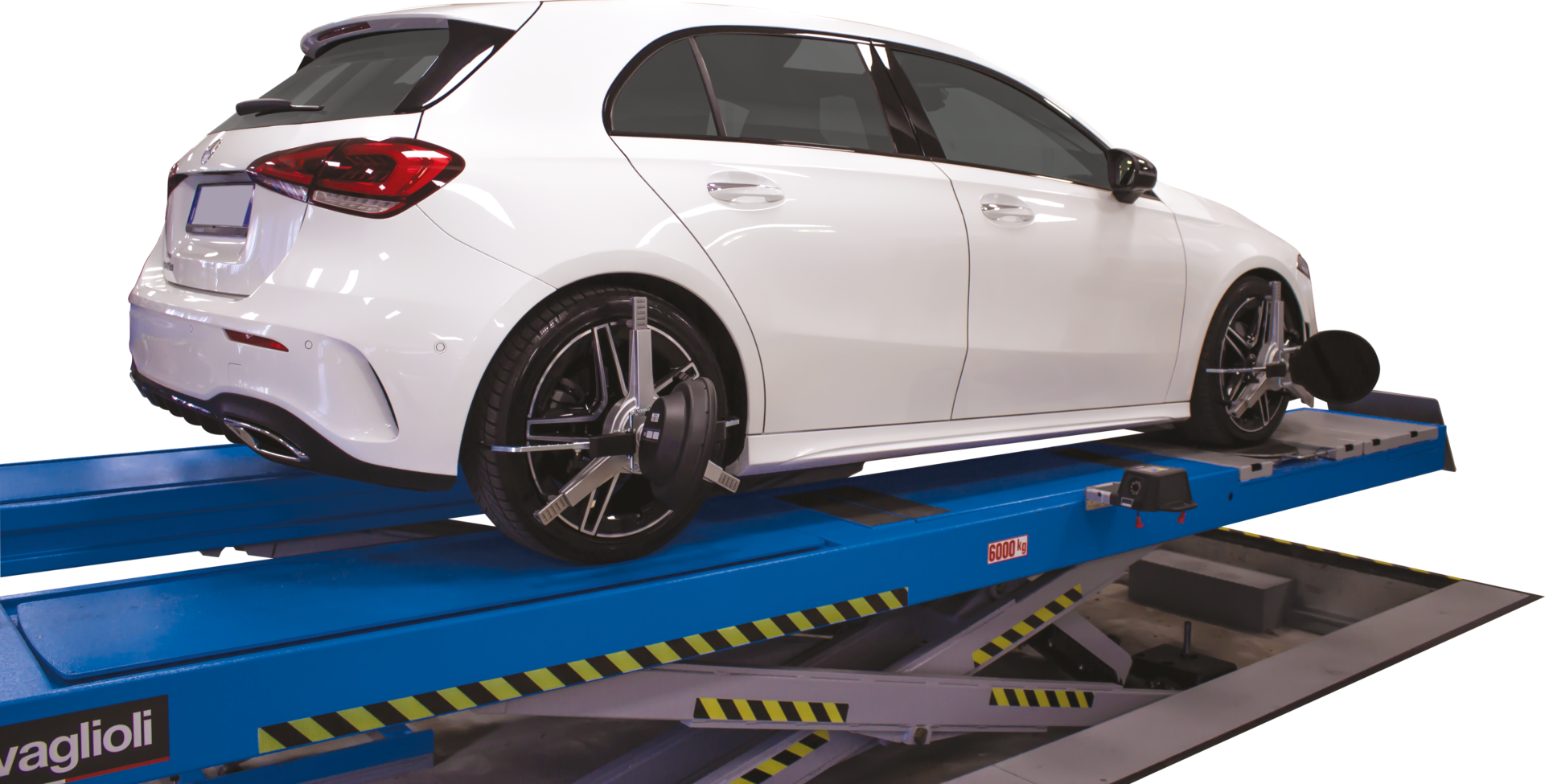

  • Set of 4 self-centering 3-point clamps requiring no compensation (Equipped with a rapid movement system and ABS claws; no metal on metal contact).
  • The 3D targets installed on the clamps are extremely lightweight, maintenance-free and have no electronic components.
  • The Real 3D targets allow the run out compensation procedure to be skipped to speed up the operator’s activity and maximize workshop efficiency.

Media

Similar Products

Accessories

Delivery

Tech Data

Features3D wheel aligner RAVTD3200SP.33D wheel aligner RAVTD3200SP.33D wheel aligner RAV3D2.0WALL.3L | Large version3D wheel aligner RAV3D2.0WALL.3L | Large version3D wheel aligner RAV3D2.0WALL.3S | Light version3D wheel aligner RAV3D2.0WALL.3S | Light version
Measuring system3D3D3D
Sensor count4
TeqLinkoptionaloptionaloptional
Workshop-Netnot possibleoptionaloptional
ASA livestreamnot possibleoptionaloptional
Colour5005RAL
Individual toe front/rear axle+/- 20°+/- 20°+/- 20°
Total toe+/- 20°+/- 20°+/- 20°
Toe-out on turns+/- 20°+/- 20°+/- 20°
Camber front/rear axle+/- 10°+/- 10°+/- 10°
Caster+/- 18°+/- 18°+/- 18°
SAI+/- 18°+/- 18°+/- 18°
Set-back+/- 5°+/- 5°+/- 5°
Set-back front axle+/- 5°+/- 5°+/- 5°
Geometric centre line+/- 5°+/- 5°+/- 5°
Thrust angle+/- 5°+/- 10°+/- 10°
Max. steering angle+/- 50°+/- 50°+/- 50°
Min. tyre size8″8″8″
Max. tyre size24″24″24″
Max. wheel diameter910mm910mm910mm
Max. wheel base4500mm4500mm4500mm
Display designdigitaldigitaldigital
DisplayTFTLCDLCD
Display size22″10″10″
Network compatibleYesYesYes
Data transmission typecordlesscordlesscordless
Load capacity per turntable1000kg
Power supply230 V | 50 – 60 Hz
Weight90kg
Width1020mm
Depth630mm
Height1590mm
