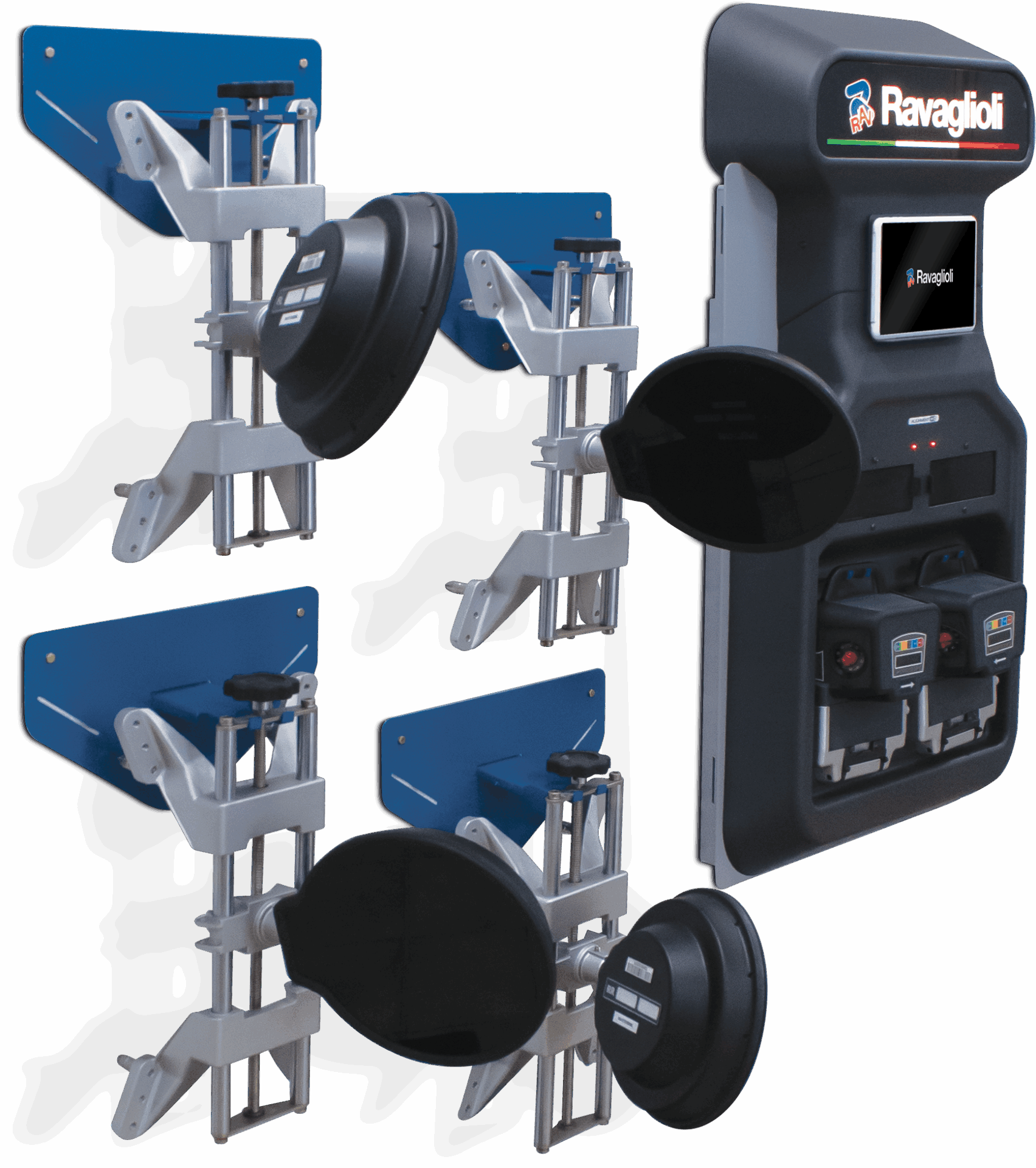

3D wheel aligner RAV3D2.0WALL.4S | Light version

3D wheel aligner with wall-mounted panel | Bluetooth data transmission | incl. 4-point clamps support with handy hooks, charging stations for 3D measuring heads and batteries fitted with magnets

MPN: RAV.3DWAL.701053
GTIN (EAN): 5063084701053
Category:
Tags:

Share on:

dashicons-media-document

Description

AllOnWall Series – The High-tech Solution for Wheel Alignment

  • Space-saving design: wheel alignment operations are performed with maximum flexibility and without space occupied by a console, a data transfer tower or a PC
  • Fully wireless: the sensors and tablet communicate via Bluetooth connection
  • Accurate precision: upgraded 3D measuring heads with HQ resolution

The AllOnWall series allows you to have all that is necessary for performing wheel alignment operations to be placed on a convenient wall-mounted panel, in this way freeing up useful space in the workshop. All alignment activities can be controlled from a 10″ tablet that the operator can carry with him or place on the lifter during adjustment thanks to the built-in magnets. The aligner boasts a well-tested measuring head technology with HD cameras and Real 3D target that is fully wireless with Bluetooth transmission.

  • Quick and accurate measurement. The 3D measuring heads instantly read all vehicle angles with maximum precision.
    • LCD display for primary information
    • Five keys for software navigation, also remote controllable
    • 5MP resolution for measurement and compensation of the lifting platform level
    • Remote control function
    • LED repeaters to assist recording
    • Only one head installation position to measure different wheelbase vehicles
    • Weight 3 kg
  • Built-in head with rubber protection and handle with plastic protection.
  • Quick connection with pivoting coupling system to prevent damage in case of obstacles while descending.
  • Battery with quick release system.
  • The battery charge lasts 8 hours to permit extended full day activity.
  • The charging stations are fitted with magnets so that the batteries can be positioned precisely while always indicating proper charging operation also due to the LED indicator.
  • 10″ Tablet extremely light in weight although with a sturdy design and time-resistant.
    • Resistant to falls up to 76 cm
    • Dust- and water-resistant (IP52)
    • Complete with adhesive magnets
    • Rounded edges to ensure greater sturdiness
    • 64 GB memory
    • Display 800 x 1280
    • Camera front 2 MP + camera rear 5 MP
    • Weighs less than 700 g
  • Set of 4 self-centering 4-point clamps + Optional: STDA38K allows you to avoid run out compensation.
  • The 3D targets installed on the clamps are extremely lightweight, maintenance-free and have no electronic components.
  • Thanks to the Real 3D targets, combined with the supporting 4-point clamps, the run out compensation procedure can be skipped to speed up the operator’s activity and maximize workshop efficiency.
  • The four supports of the clamps can be also secured to the lift columns to have them near to the vehicles wheels. (Fastening kit of magnets needed – Item no. STDA165).
  • The iconic Ravaglioli logo comes to life thanks to a LED backlit panel.
  • Compatible with the TEq-Link system.
  • Internet connection to
    • Sending of results to customers.
    • Remote assistance.
  • More efficient workshop in terms of space and operations:
    • NO OBSTACLE: Maximization of the available workspace
    • RAPID WORK: Always perfect transmission signal
    • MINIMUM EFFORT: No run out compensation
    • NO LIMITS: One aligner for multiple working bays
  • Charging stations for two batteries fitted with magnets
  • Tablet with 10″ 800 x 1280 multi-touch display complete with adhesive magnets. Rechargeable on the panel
  • 3D measuring heads storage housing equipped with rubber impact-resistant matting

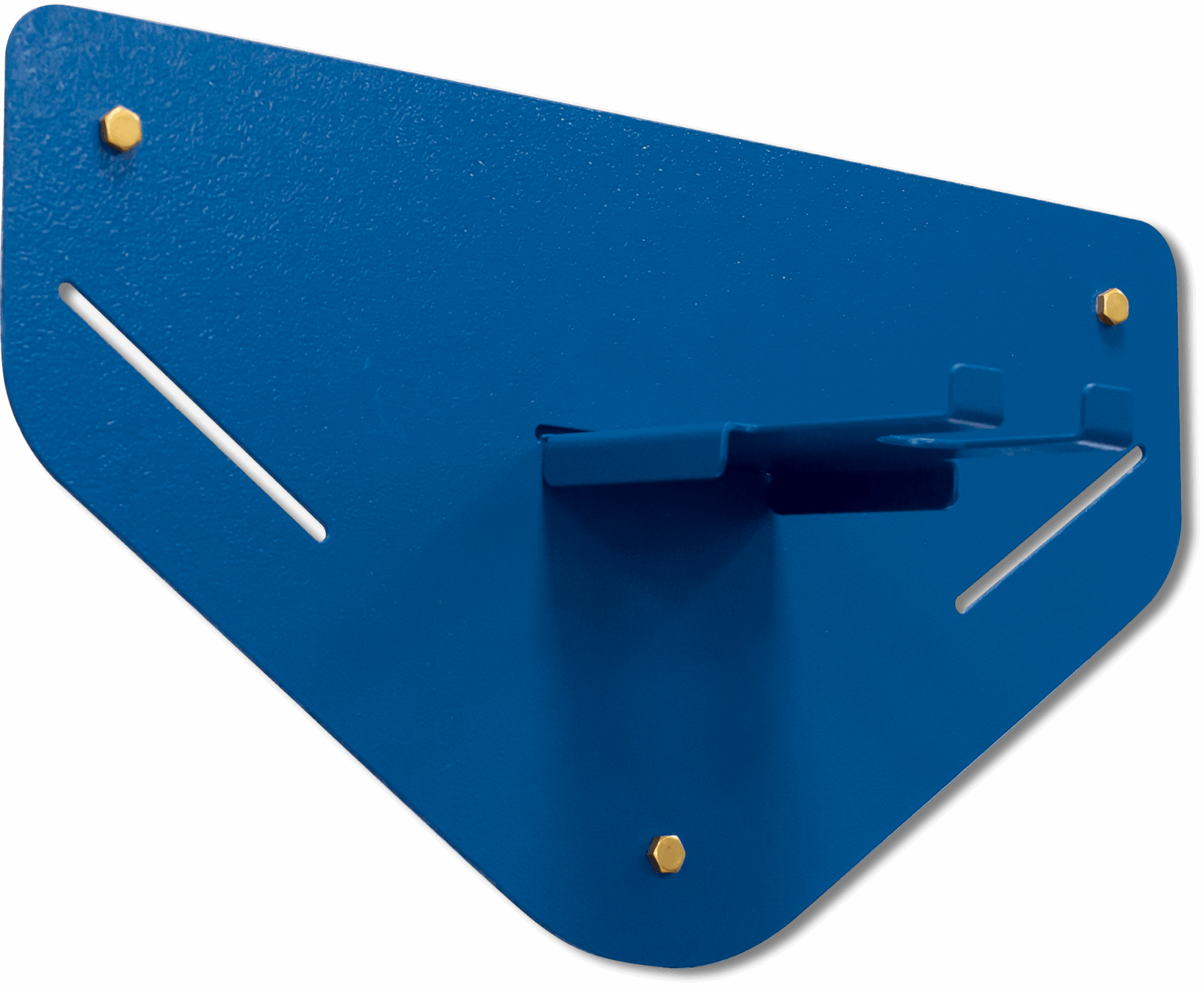

  • 4-point clamps support with handy hooks
  • Console – Weighs less than 14 kg

Media

Similar Products

Accessories

Delivery

Tech Data

Features3D wheel aligner RAV3D2.0WALL.4S | Light version3D wheel aligner RAV3D2.0WALL.4S | Light version3D wheel aligner RAV3D2.0WALL.3S | Light version3D wheel aligner RAV3D2.0WALL.3S | Light version3D wheel aligner RAV3D2.0WALL.3L | Large version3D wheel aligner RAV3D2.0WALL.3L | Large version3D wheel aligner RAVTD3200SP.43D wheel aligner RAVTD3200SP.43D wheel aligner RAVTD3200L.43D wheel aligner RAVTD3200L.4
Measuring system3D3D3D3D3D
TeqLinkoptionaloptionaloptionaloptionaloptional
Workshop-Netoptionaloptionaloptionalnot possiblenot possible
ASA livestreamoptionaloptionaloptionalnot possiblenot possible
Individual toe front/rear axle+/- 20°+/- 20°+/- 20°+/- 20°+/- 20°
Total toe+/- 20°+/- 20°+/- 20°+/- 20°+/- 20°
Toe-out on turns+/- 20°+/- 20°+/- 20°+/- 20°+/- 20°
Camber front/rear axle+/- 10°+/- 10°+/- 10°+/- 10°+/- 10°
Caster+/- 18°+/- 18°+/- 18°+/- 18°+/- 18°
SAI+/- 18°+/- 18°+/- 18°+/- 18°+/- 18°
Set-back+/- 5°+/- 5°+/- 5°+/- 5°+/- 5°
Set-back front axle+/- 5°+/- 5°+/- 5°+/- 5°+/- 5°
Geometric centre line+/- 5°+/- 5°+/- 5°+/- 5°+/- 5°
Thrust angle+/- 10°+/- 10°+/- 10°+/- 5°+/- 5°
Max. steering angle+/- 50°+/- 50°+/- 50°+/- 50°+/- 50°
Min. tyre size8″8″8″8″8″
Max. tyre size24″24″24″24″24″
Max. wheel diameter910mm910mm910mm910mm910mm
Max. wheel base4500mm4500mm4500mm4500mm4500mm
Hardwarestandardstandardstandard
Hardware versionTabletTabletTablet
Display designdigitaldigitaldigitaldigitaldigital
DisplayLCDLCDLCDTFTTFT
Display size10″10″10″22″22″
Network compatibleYesYesYesYesYes
Data transmission typecordlesscordlesscordlesscordlesscordless
