Description
AllOnWall Series – The High-tech Solution for Wheel Alignment
- Space-saving design: wheel alignment operations are performed with maximum flexibility and without space occupied by a console, a data transfer tower or a PC
- Fully wireless: the sensors and tablet communicate via Bluetooth connection
- Accurate precision: upgraded 3D measuring heads with HQ resolution
The AllOnWall series allows you to have all that is necessary for performing wheel alignment operations to be placed on a convenient wall-mounted panel, in this way freeing up useful space in the workshop. All alignment activities can be controlled from a 10″ tablet that the operator can carry with him or place on the lifter during adjustment thanks to the built-in magnets. The aligner boasts a well-tested measuring head technology with HD cameras and Real 3D target that is fully wireless with Bluetooth transmission.

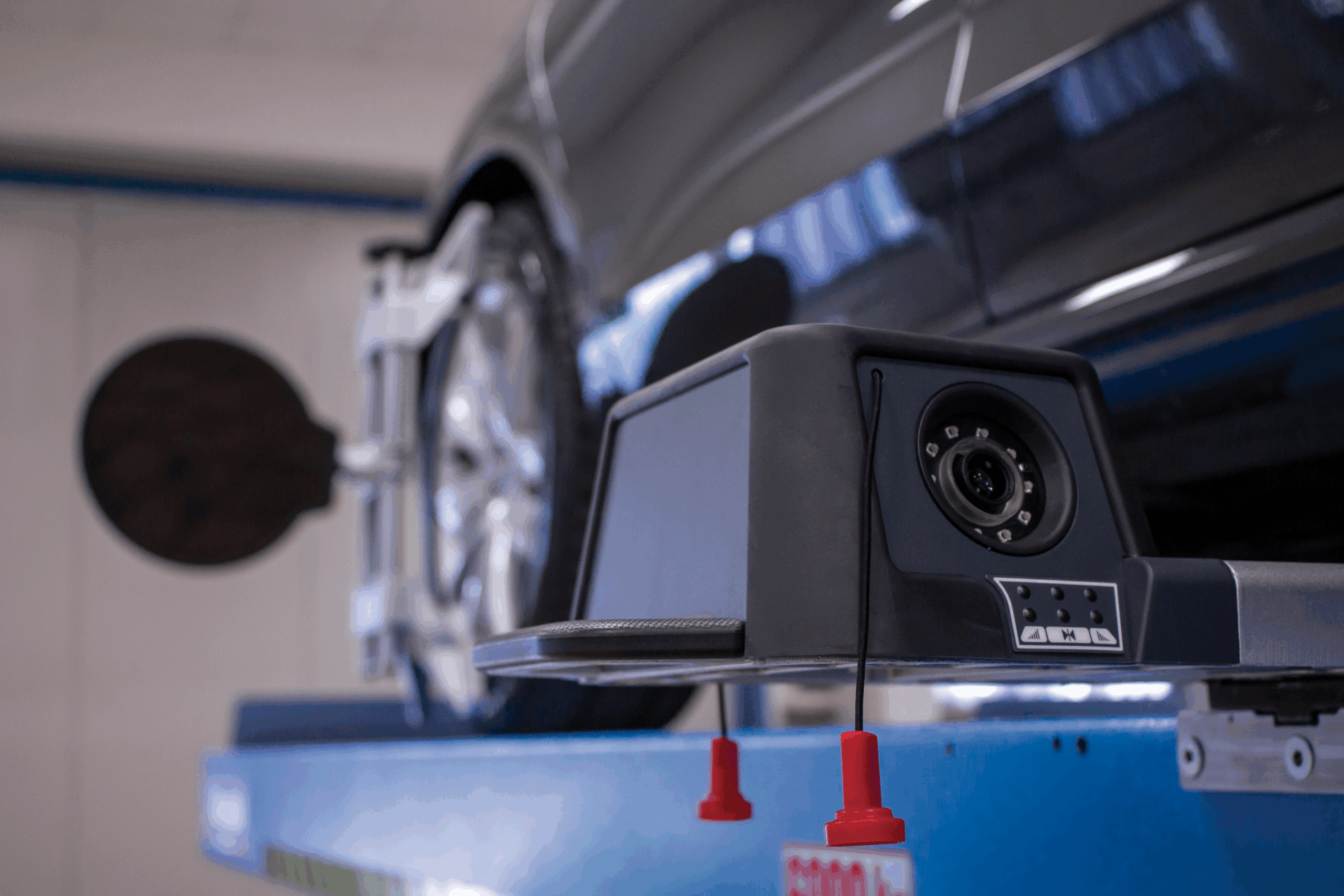

- Quick and accurate measurement. The 3D measuring heads instantly read all vehicle angles with maximum precision.
- LCD display for primary information
- Five keys for software navigation, also remote controllable
- 5MP resolution for measurement and compensation of the lifting platform level
- Remote control function
- LED repeaters to assist recording
- Only one head installation position to measure different wheelbase vehicles
- Weight 3 kg

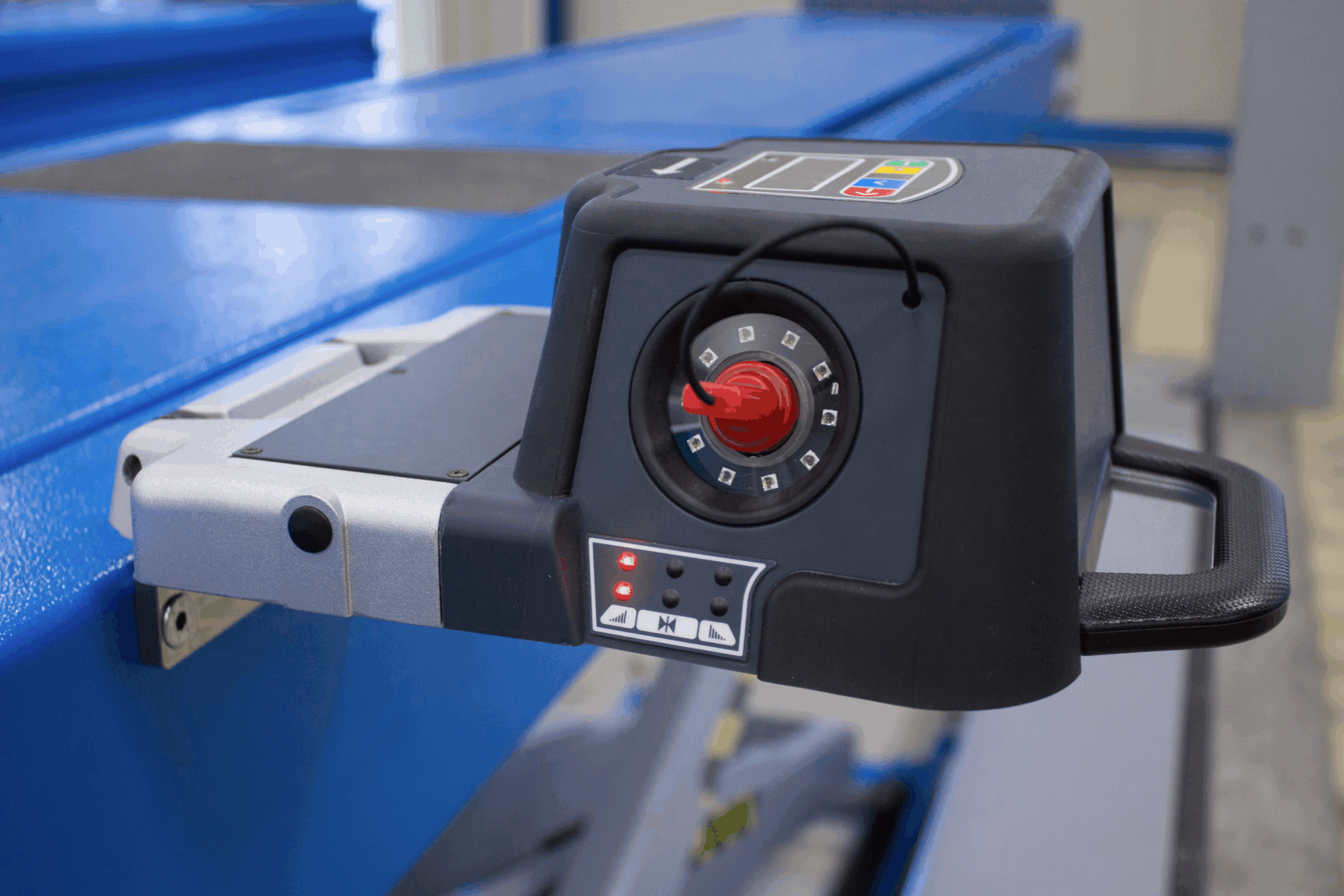

- Built-in head with rubber protection and handle with plastic protection.

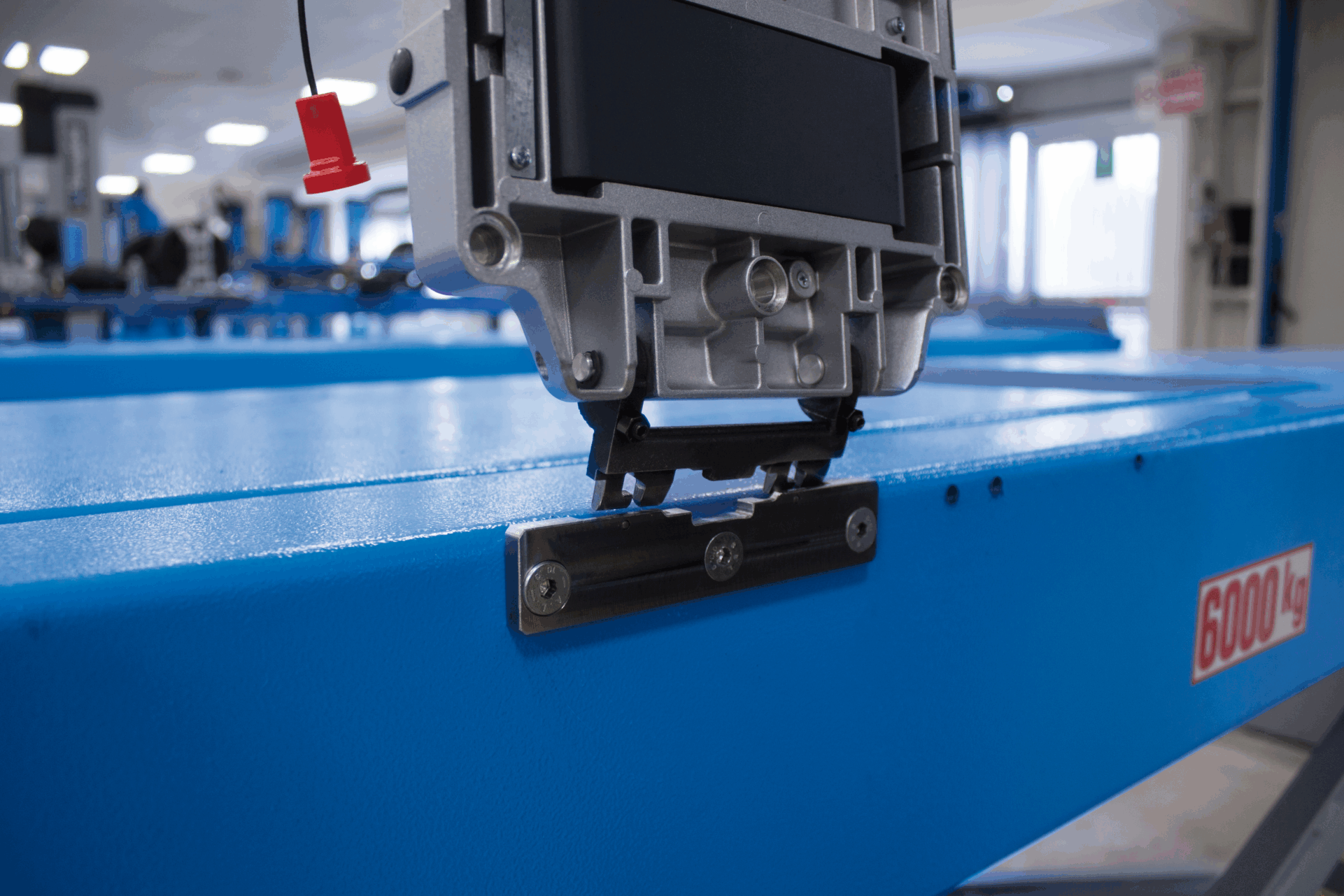

- Quick connection with pivoting coupling system to prevent damage in case of obstacles while descending.
- Battery with quick release system.
- The battery charge lasts 8 hours to permit extended full day activity.
- The charging stations are fitted with magnets so that the batteries can be positioned precisely while always indicating proper charging operation also due to the LED indicator.
- 10″ Tablet extremely light in weight although with a sturdy design and time-resistant.
- Resistant to falls up to 76 cm
- Dust- and water-resistant (IP52)

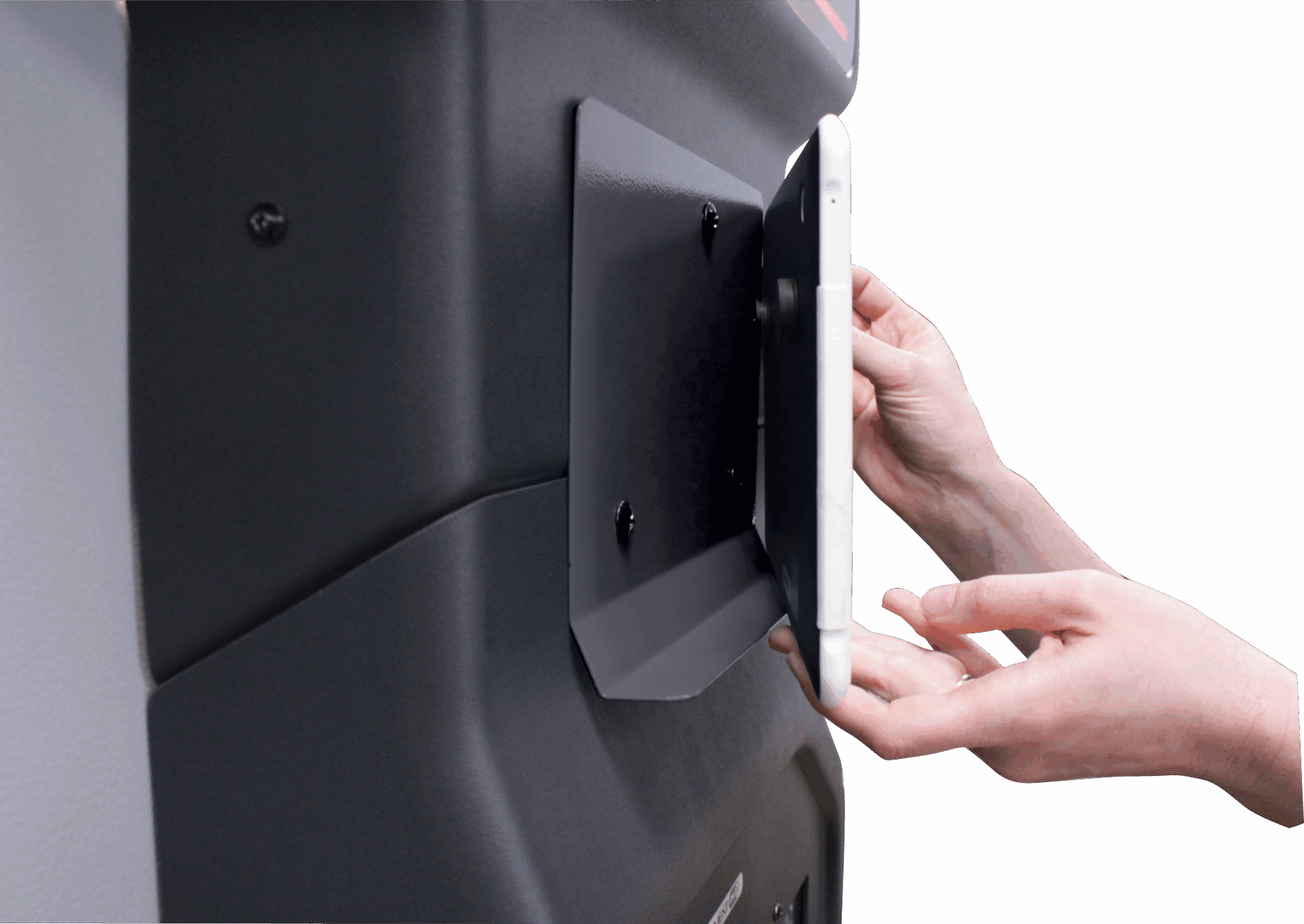

- Complete with adhesive magnets
- Rounded edges to ensure greater sturdiness
- 64 GB memory
- Display 800 x 1280
- Camera front 2 MP + camera rear 5 MP
- Weighs less than 700 g
- Set of 4 self-centering 3-point clamps requiring no compensation (Equipped with a rapid movement system and ABS claws; no metal on metal contact).

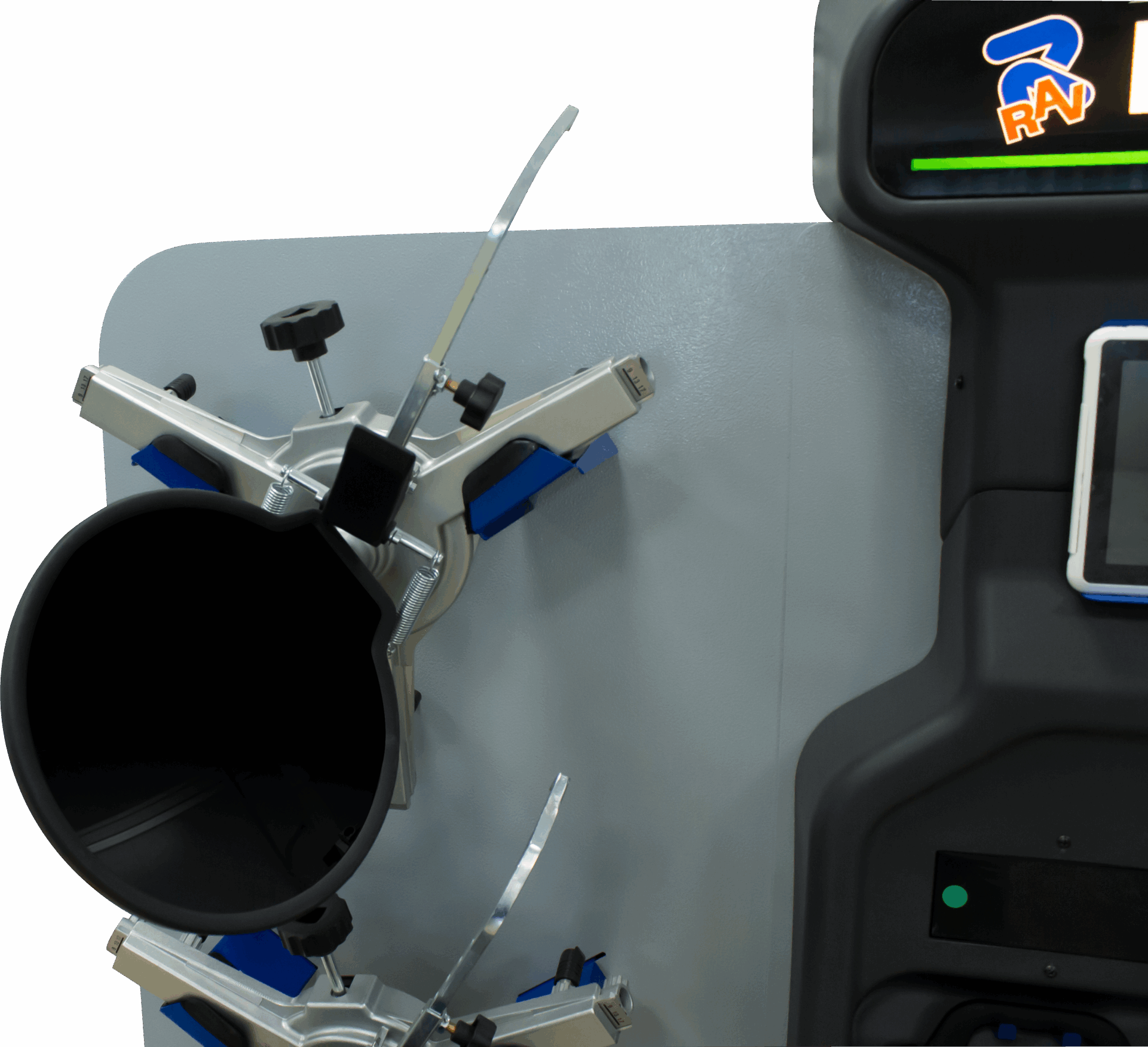

- The 3D targets installed on the clamps are extremely lightweight, maintenance-free and have no electronic components.
- Thanks to the Real 3D targets, combined with the supporting 3-point clamps, the run out compensation procedure can be skipped to speed up the operator’s activity and maximize workshop efficiency.

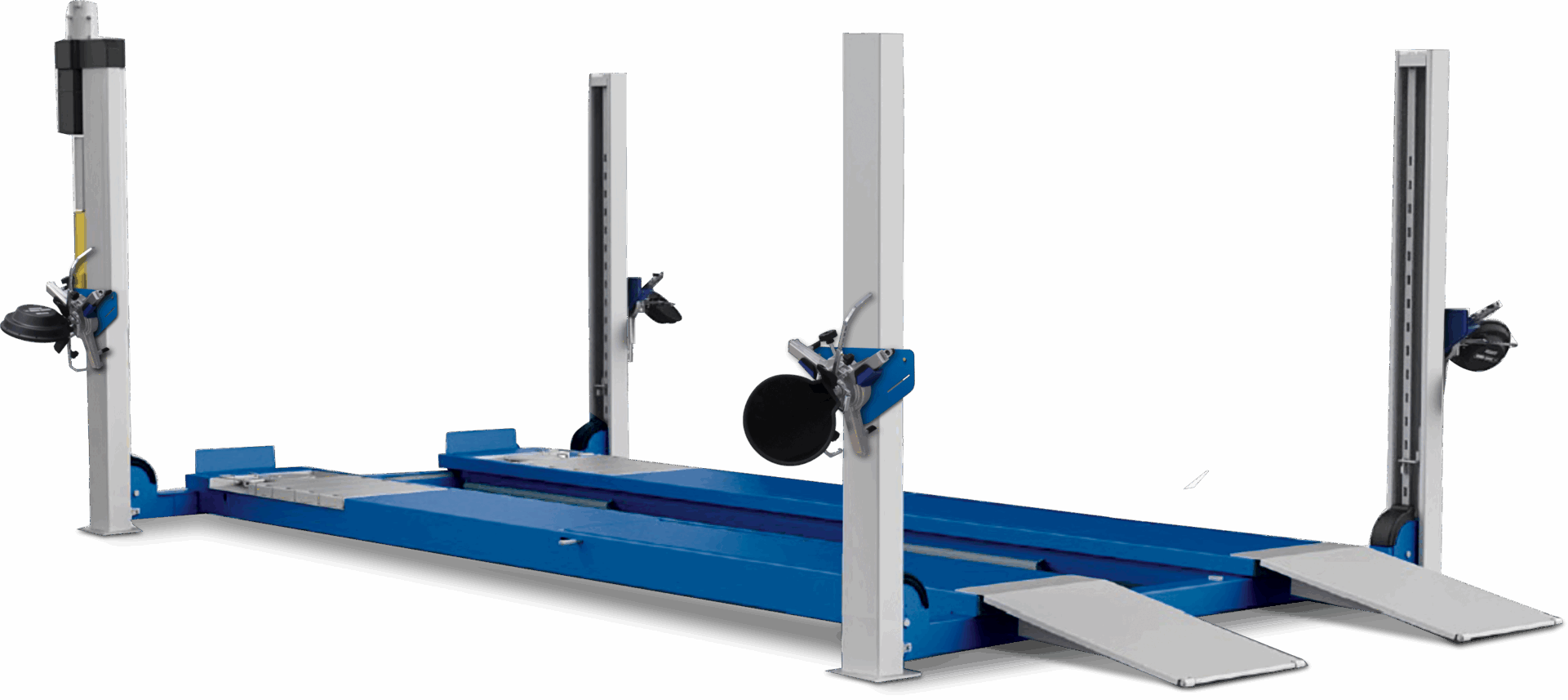

- The four supports of the clamps can be also secured to the lift columns to have them near to the vehicles wheels. (Fastening kit of magnets needed – Item no. STDA165).
- The iconic Ravaglioli logo comes to life thanks to a LED backlit panel.
- Compatible with the TEq-Link system.
- Internet connection to
- Sending of results to customers.
- Remote assistance.

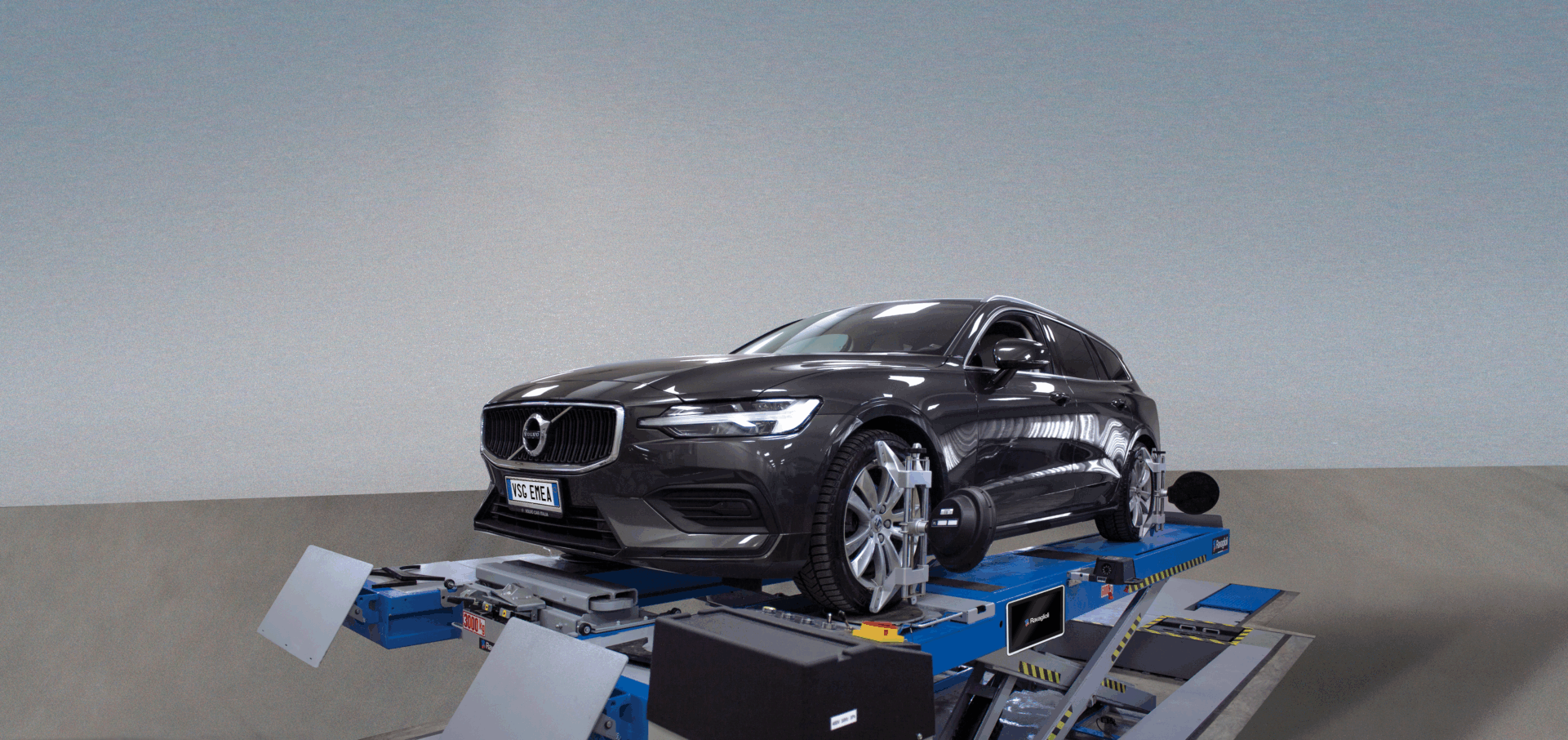

- More efficient workshop in terms of space and operations:
- NO OBSTACLE: Maximization of the available workspace
- RAPID WORK: Always perfect transmission signal
- MINIMUM EFFORT: No run out compensation
- NO LIMITS: One aligner for multiple working bays
- Charging stations for two batteries fitted with magnets
- Tablet with 10″ 800 x 1280 multi-touch display complete with adhesive magnets. Rechargeable on the panel
- 3D measuring heads storage housing equipped with rubber impact-resistant matting

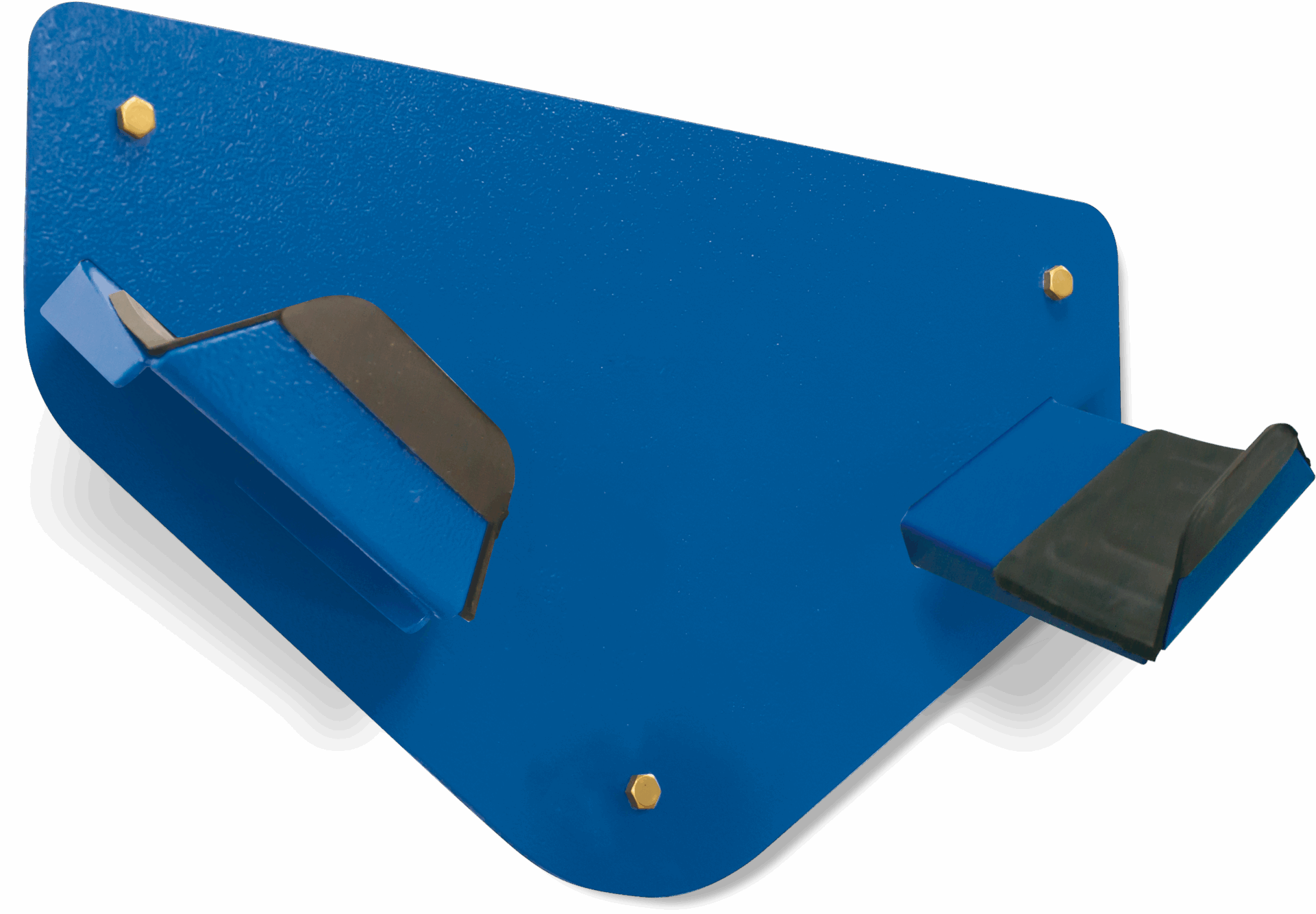

- 3-point clamps support with handy hooks
- Console – Weighs less than 14 kg
