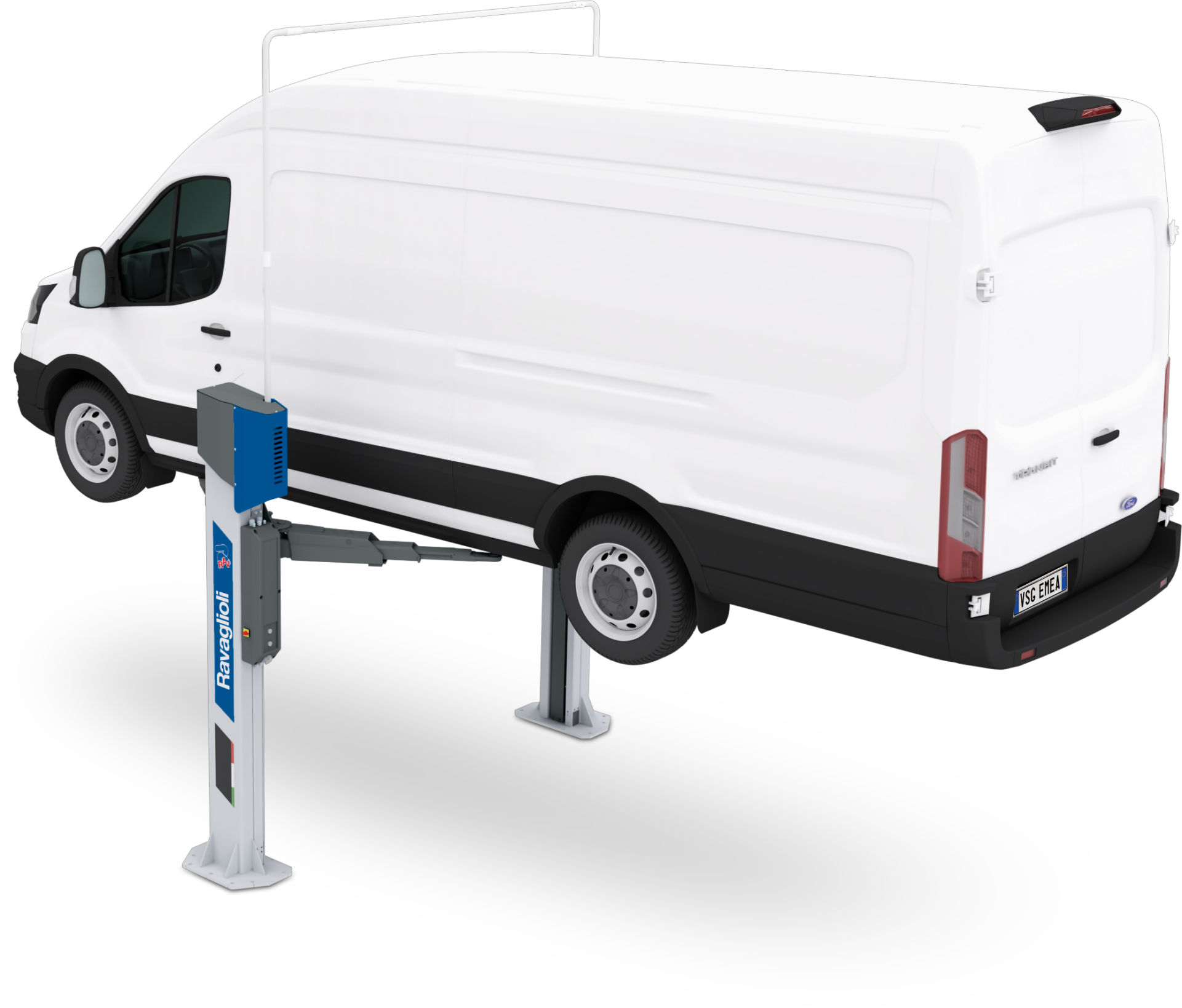

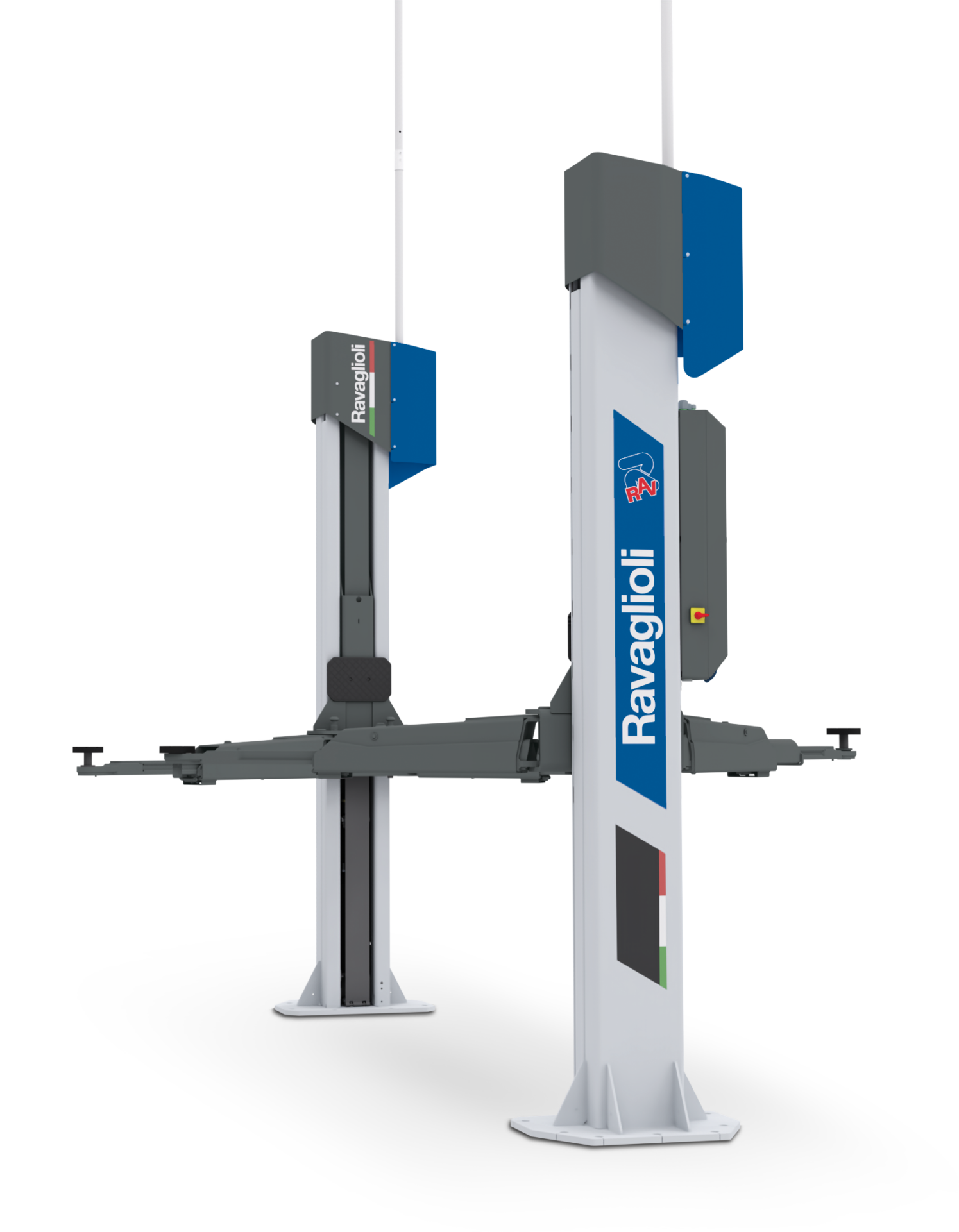

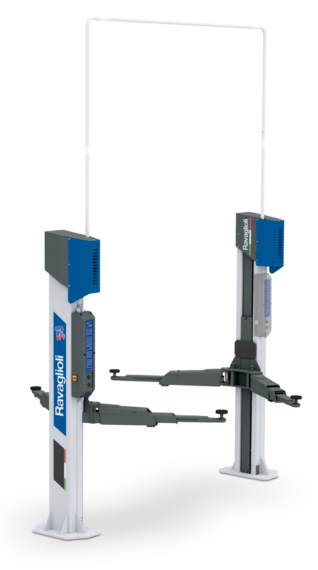

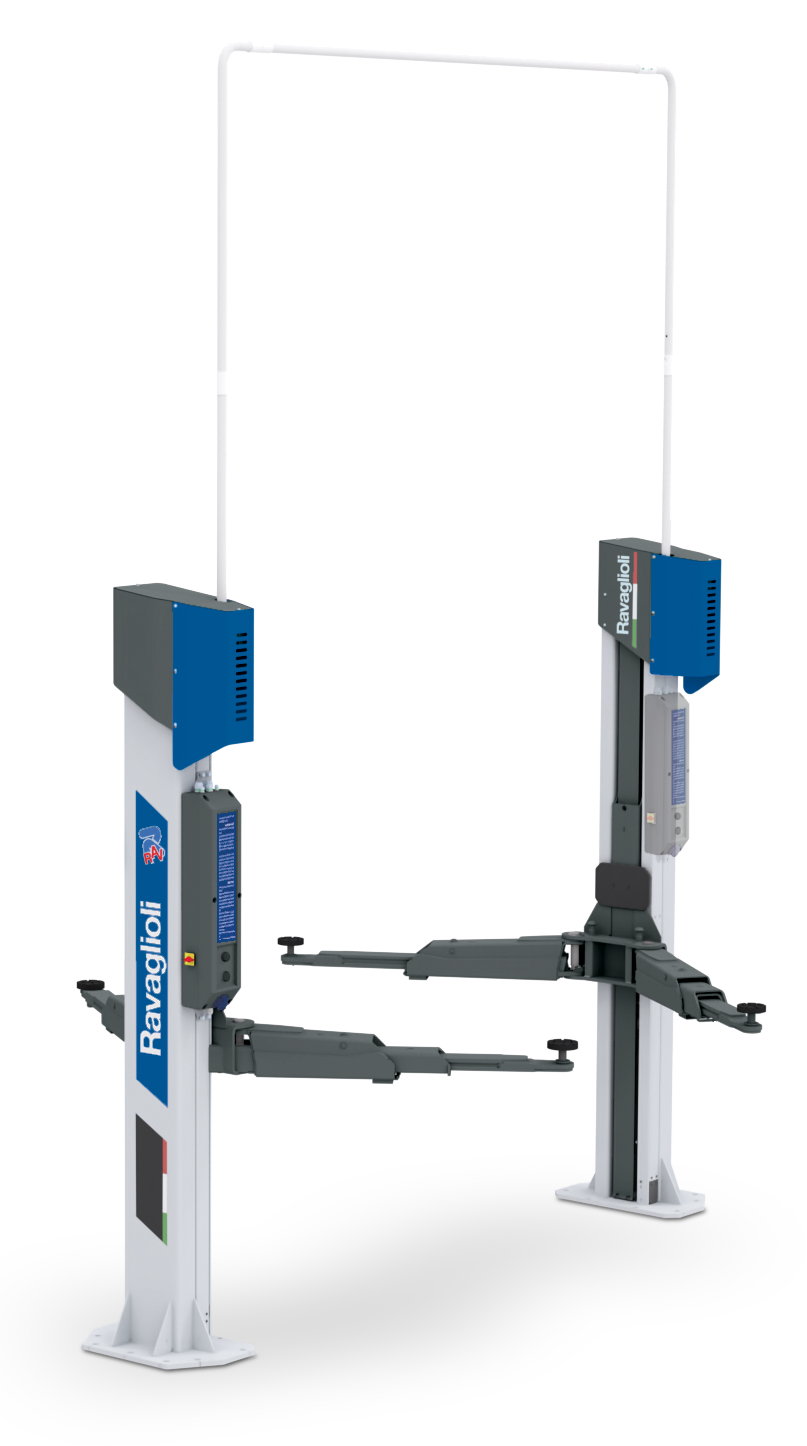

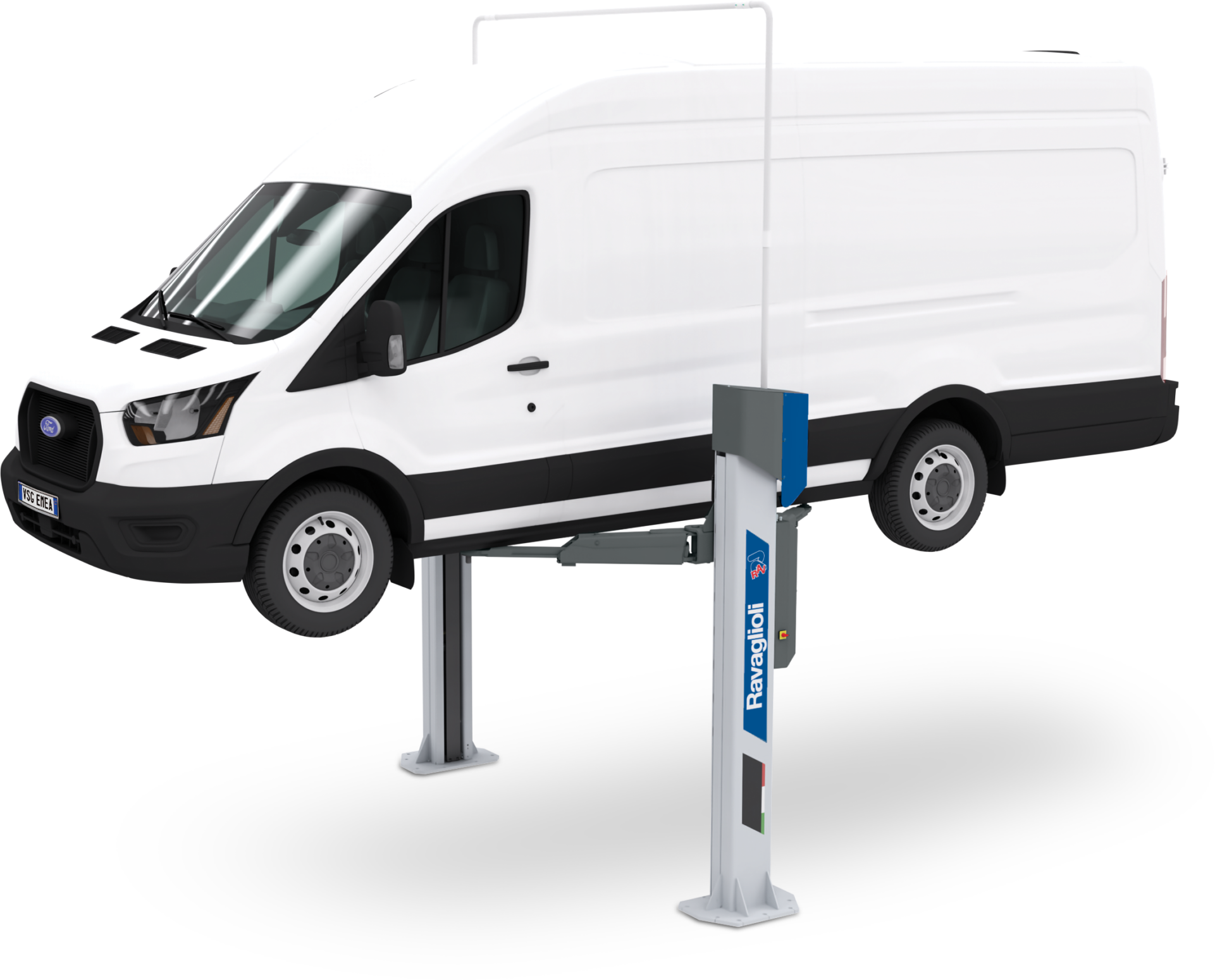

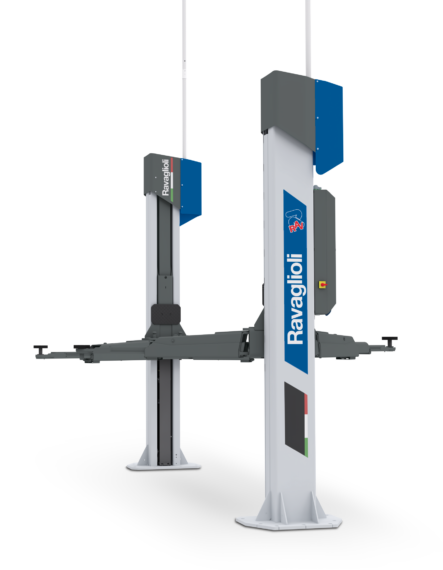

2-post lift KPX55LIKTA

5.5 t, electromechanical, symmetrical, 2-stage long arms, 4 long arms, 4-stage front arms, double control panel, with TEq-Link and Energy kit

MPN: RAV.KPX55.198945
GTIN (EAN): 5063084198945
Category:
Tags: , ,

Share on:

dashicons-media-document

Description

From History to the Future

  • Up-to-date design: modern outline that brings modernity and usability to the workshop
  • Innovative DNA: long-standing high-quality components and tested for 20000 cycles
  • Future-proof: lifts designed for the TEq-Link workshop connectivity system

Emerging from the bestselling 2-post lifts, the Legend Series consolidates the engineering knowledge of Ravaglioli and shapes it into an innovative package. Looking towards the future while always honouring the past, Ravaglioli has set an important goal for itself – let the performance meet the design.

  • Controlled up/down by pushing button positioned at an ergonomic height.
  • Minimum height of the pads suitable for asymmetric loading, of armoured cars as well.
  • Smart and flexible installation – Up to 20% improvement in installation time: The electronic synchronization avoids the installation and adjustment of the realignment cable. The lifts can be installed in a flexible way thanks to three width adjustable positions.
  • More space for movement around the vehicle – The lift is designed to maximise its layout while ensuring minimum space requirements.
  • TEq-Link connected workshop – All models of this series are equipped with up/down buttons and TEq-Link connectivity.
  • The geometry of the arms was designed to lift long-wheelbase commercial vehicles and vans, as well as cars and armoured cars
  • Version with two arms long 3-stage and two short 4-stage 4 stages
  • Automatic arm locking system
  • High efficiency motors
  • Automatic and permanent nut lubrication system to guarantee efficient movement during lifting and descent
  • Steel high resistance rolled screw to provide long life
  • Equipped with an acoustic anti-toe trap system – Free from mechanical foot guards
  • Possibility to install without gantry since cables can be placed inground
  • Premium quality of components:
    • Aluminium pulley with cooling function
    • Long-lasting bearings
    • 50% longer, bronze load nut
    • Motors with reinforced and cooling casing
    • Solid automatic arm locking

Media

Similar Products

Accessories

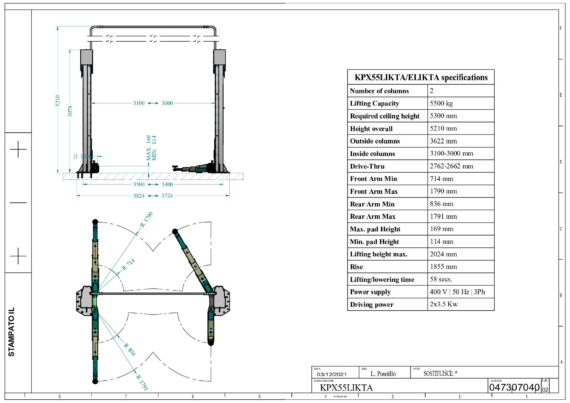

Tech Data

Features2-post lift KPX55LIKTA2-post lift KPX55LIKTA2-post lift KPX55ELIKTA2-post lift KPX55ELIKTA
Number of columns22
Mode of driveelectromechanicalelectromechanical
Controlelectricelectric
Type of installationfloor mountedfloor mounted
Rated load capacity5500kg5500kg
Max. lifting height2052mm2052mm
Lifting time58s58s
Min. plate height114mm114mm
Max. plate heigh169mm169mm
Clear span between3000 – 3100mm3000 – 3100mm
Clear span between (out)3622mm3622mm
Column height3080mm3080mm
Drive-through width2662 – 2762mm2662 – 2762mm
Required ceiling height5300mm5300mm
Surface coatingPowder coatedPowder coated
Arm layoutasymmetricalasymmetrical
Telescopic front arms4-fold4-fold
Telescopic rear arms3-fold3-fold
Min. front arm length705mm705mm
Max. front arm length1790mm1790mm
Min. rear arm length822mm822mm
Max. rear arm length1791mm1791mm
Driving power2 x 3,5kW2 x 3,5kW
Power supply400 V | 50 Hz400 V | 50 Hz
Width3724 – 3824mm3724 – 3824mm
Height5210mm5210mm
Weight1148kg1148kg
