2-Post lift KPX42ELIK

4.2 t, electromechanical, symmetrical, push button operation on both sides, 4 x 3-stage arms, TEq-Link, energy kit

MPN: RAV.KPX42.198488
GTIN (EAN): 5063084198488
Category:
Tags: , ,

Share on:

dashicons-media-document

Description

From History to the Future

  • Up-to-date design: modern outline that brings modernity and usability to the workshop
  • Innovative DNA: long-standing high-quality components and tested for 20000 cycles
  • Future-proof: lifts designed for the TEq-Link workshop connectivity system

Emerging from the bestselling 2-post lifts, the Legend Series consolidates the engineering knowledge of Ravaglioli and shapes it into an innovative package. Looking towards the future while always honouring the past, Ravaglioli has set an important goal for itself – let the performance meet the design.

  • Controlled up/down by pushing button positioned at an ergonomic height
  • Minimum height of the pads suitable for asymmetric loading, of armoured cars as well
  • Smart and flexible installation – Up to 20% improvement in installation time: The electronic synchronization avoids the installation and adjustment of the realignment cable. The lifts can be installed in a flexible way thanks to three width adjustable positions.
  • More space for movement around the vehicle – The lift is designed to maximise its layout while ensuring minimum space requirements.
  • TEq-Link connected workshop – All models of this series are equipped with up/down buttons and TEq-Link connectivity.
  • Symmetrical arm configuration (four long arms)
  • Designed for lifting long-wheelbase vans
  • Automatic arm locking system
  • High efficiency motors
  • E version equipped with double control panel and Energy kit
  • Automatic and permanent nut lubrication system to guarantee efficient movement during lifting and descent
  • Steel high resistance rolled screw to provide long life
  • Equipped with an acoustic anti-toe trap system – Free from mechanical foot guards
  • Possibility to install the baseless version with flush mounted connection cables
  • Premium quality of components:
    • Aluminium pulley with cooling function
    • Long-lasting bearings
    • 50% longer, bronze load nut
    • Motors with reinforced and cooling casing
    • Solid automatic arm locking

Media

Similar Products

Accessories

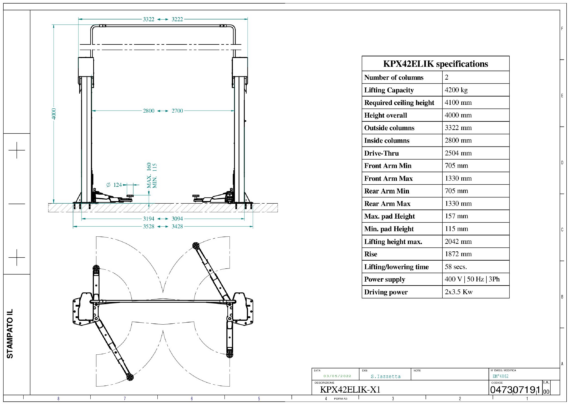

Tech Data

Features2-Post lift KPX42ELIK2-Post lift KPX42ELIK2-Post lift KPX42LIK2-Post lift KPX42LIK
Number of columns22
Mode of driveelectromechanicalelectromechanical
Controlelectricelectric
Type of installationfloor mountedfloor mounted
Rated load capacity4200kg4200kg
Max. lifting height2042mm2042mm
Lifting time58s58s
Min. plate height115mm115mm
Max. plate heigh156mm156mm
Clear span between2700 – 2800mm2700 – 2800mm
Clear span between (out)3322mm3322mm
Column height2860mm2860mm
Drive-through width2404 – 2504mm2404 – 2504mm
Required ceiling height4100mm4100mm
Surface coatingPowder coatedPowder coated
Arm layoutsymmetricalsymmetrical
Telescopic front arms3-fold3-fold
Telescopic rear arms3-fold3-fold
Min. front arm length705mm705mm
Max. front arm length1330mm1330mm
Min. rear arm length705mm705mm
Max. rear arm length1330mm1330mm
Driving power2 x 3,5kW2 x 3,5kW
Power supply400 V | 50 Hz400 V | 50 Hz
Width3428 – 3528mm3428 – 3528mm
Height4000mm4000mm
Weight665kg665kg
