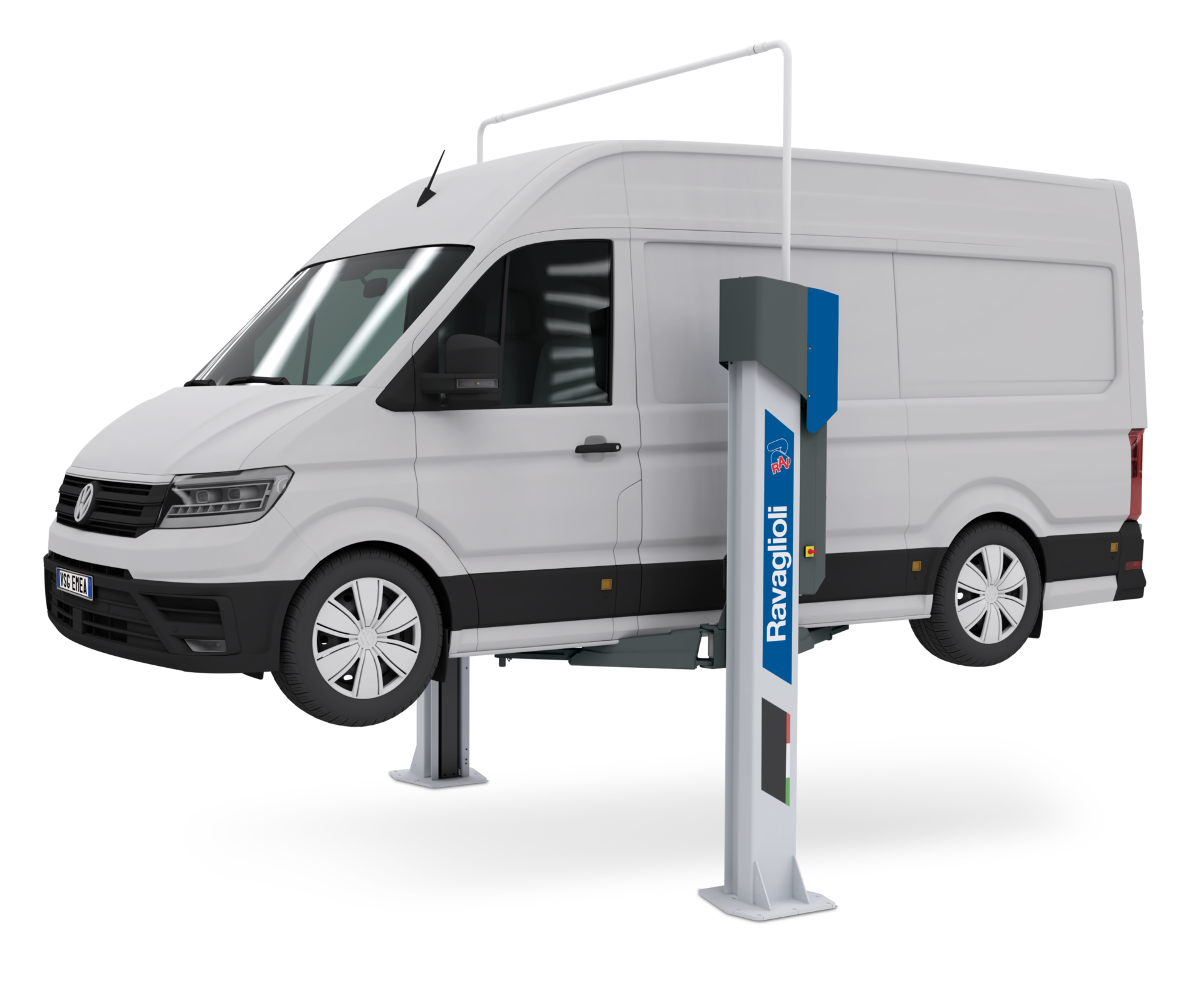

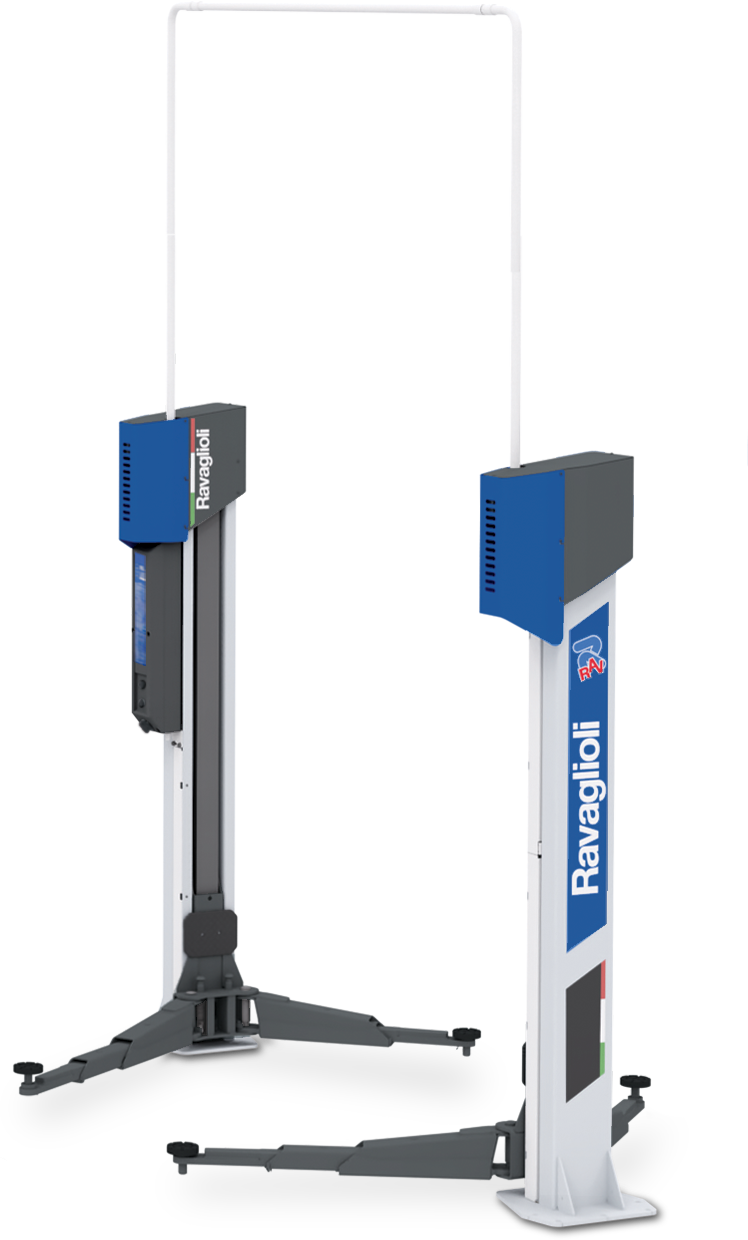

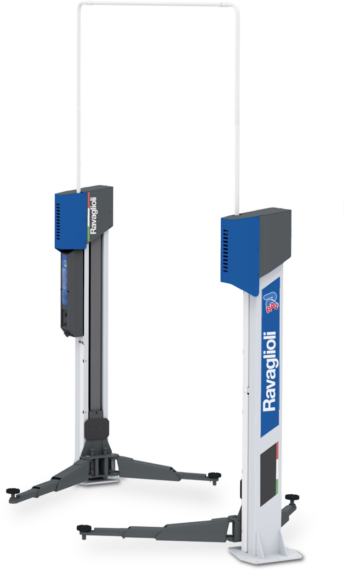

2-Post lift KPX42

4.2 t, electromechanical, symmetrical posts, asymmetrical support arms, 2-stage long arms, 3-stage short arms, TEq-Link

MPN: RAV.KPX42.198259
GTIN (EAN): 5063084198259
Category:
Tags: , ,

Share on:

dashicons-media-document

Description

From History to the Future

  • Up-to-date design: modern outline that brings modernity and usability to the workshop
  • Innovative DNA: long-standing high-quality components and tested for 20000 cycles
  • Future-proof: lifts designed for the TEq-Link workshop connectivity system

Emerging from the bestselling 2-post lifts, the Legend Series consolidates the engineering knowledge of Ravaglioli and shapes it into an innovative package. Looking towards the future while always honouring the past, Ravaglioli has set an important goal for itself – let the performance meet the design.

  • Controlled up/down by pushing button positioned at an ergonomic height
  • Minimum height of the pads suitable for asymmetric loading, of armoured cars as well
  • Smart and flexible installation – Up to 20% improvement in installation time: The electronic synchronization avoids the installation and adjustment of the realignment cable. The lifts can be installed in a flexible way thanks to three width adjustable positions.
  • More space for movement around the vehicle – The lift is designed to maximise its layout while ensuring minimum space requirements.
  • TEq-Link connected workshop – All models of this series are equipped with up/down buttons and TEq-Link connectivity.

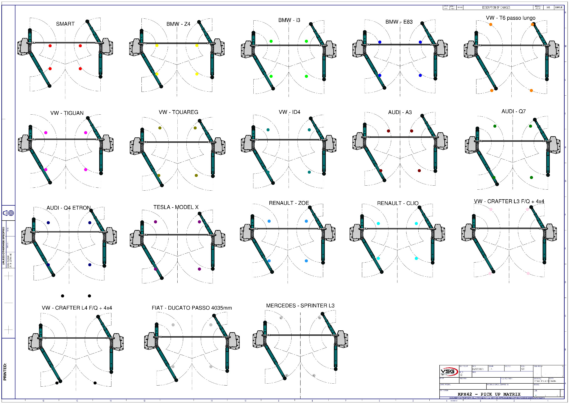

  • The geometry of the arms was designed to lift long-wheelbase cars, commercial vehicles and vans
  • Asymmetrical arm configuration (two long and two short arms)
  • Automatic arm locking system
  • High efficiency motors
  • Automatic and permanent nut lubrication system to guarantee efficient movement during lifting and descent
  • Steel high resistance rolled screw to provide long life
  • Equipped with an acoustic anti-toe trap system – Free from mechanical foot guards
  • Possibility to install the baseless version with flush mounted connection cables
  • Premium quality of components:
    • Aluminium pulley with cooling function
    • Long-lasting bearings
    • 50% longer, bronze load nut
    • Motors with reinforced and cooling casing
    • Solid automatic arm locking

Media

Similar Products

Accessories

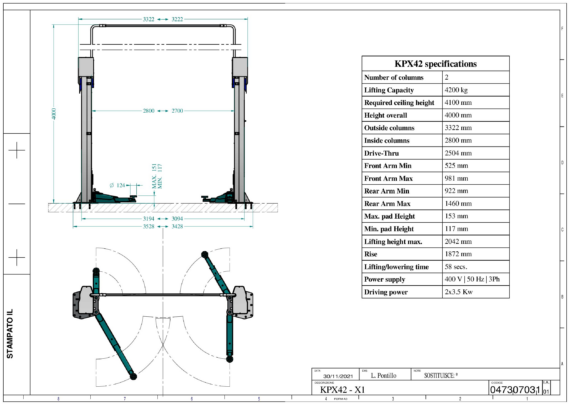

Tech Data

Features2-Post lift KPX422-Post lift KPX422-Post lift KPX42E2-Post lift KPX42E
Number of columns22
Mode of driveelectromechanicalelectromechanical
Controlelectricelectric
Type of installationfloor mountedfloor mounted
Rated load capacity4200kg4200kg
Max. lifting height2042mm2042mm
Lifting time58s58s
Min. plate height117mm117mm
Max. plate heigh153mm153mm
Clear span between2700 – 2800mm2700 – 2800mm
Clear span between (out)3322mm3322mm
Column height2860mm2860mm
Drive-through width2404 – 2504mm2404 – 2504mm
Required ceiling height4100mm4100mm
Surface coatingPowder coatedPowder coated
Arm layoutasymmetricalasymmetrical
Telescopic front arms3-fold3-fold
Telescopic rear arms2-fold2-fold
Min. front arm length525mm525mm
Max. front arm length981mm981mm
Min. rear arm length922mm922mm
Max. rear arm length1460mm1460mm
Driving power2 x 3,5kW2 x 3,5kW
Power supply400 V | 50 Hz400 V | 50 Hz
Width3428 – 3528mm3428 – 3528mm
Height4000mm4000mm
Weight656kg653kg
