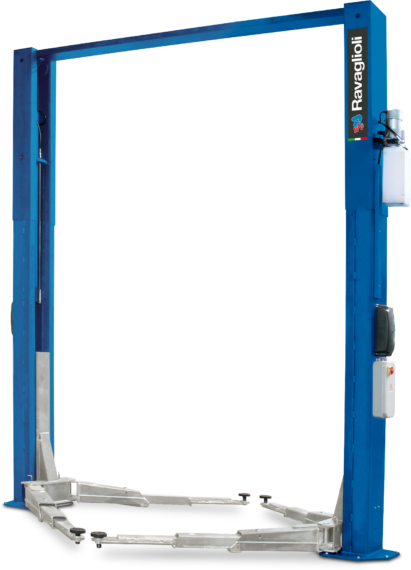

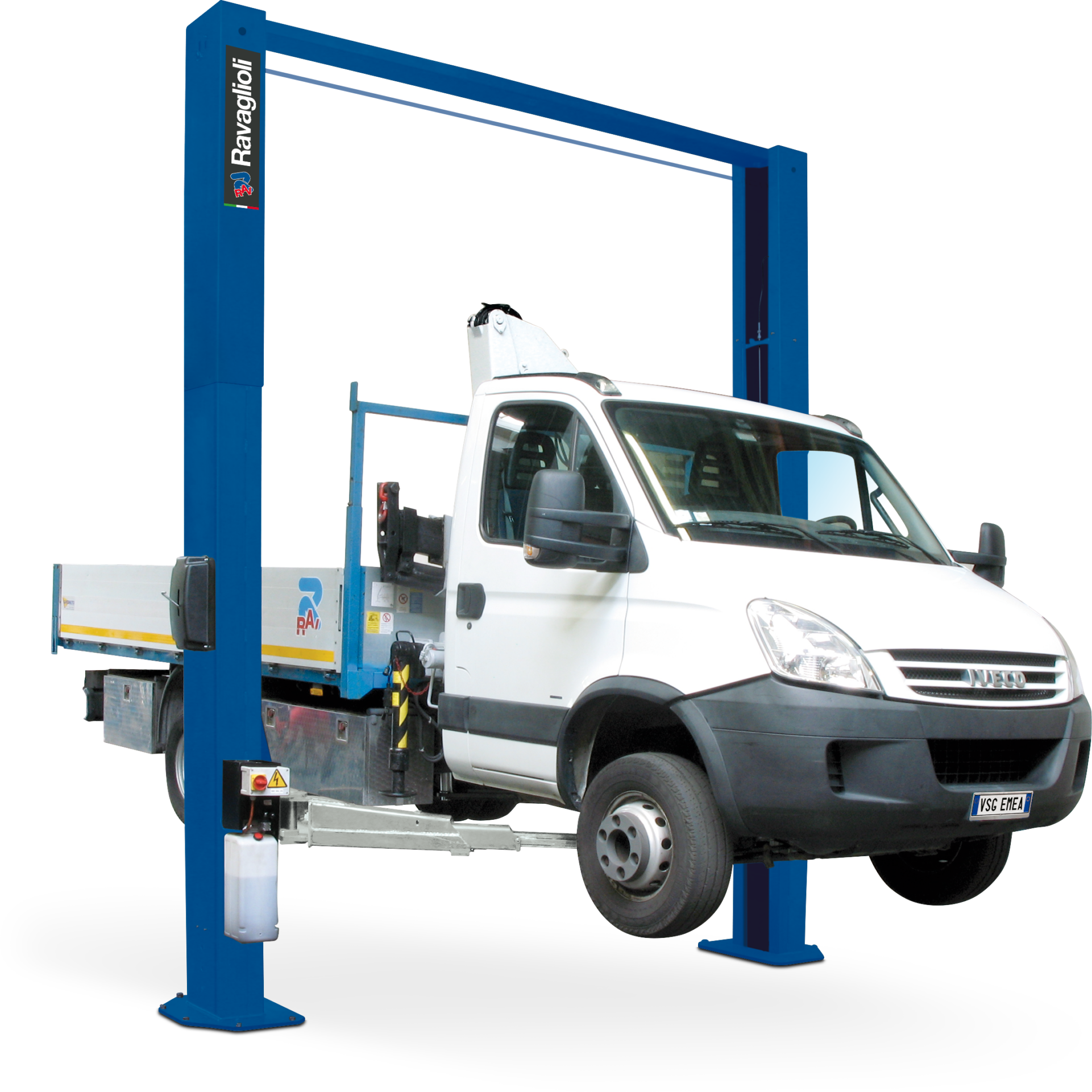

2-Post lift KPH370.70LIKTA

7.0 t, electrohydraulic, asymmetrical, supporting arms 4 x 3-piece

MPN: KPH370.70LIKTA
Category:
Tags: , ,

Share on:

dashicons-media-document

Description

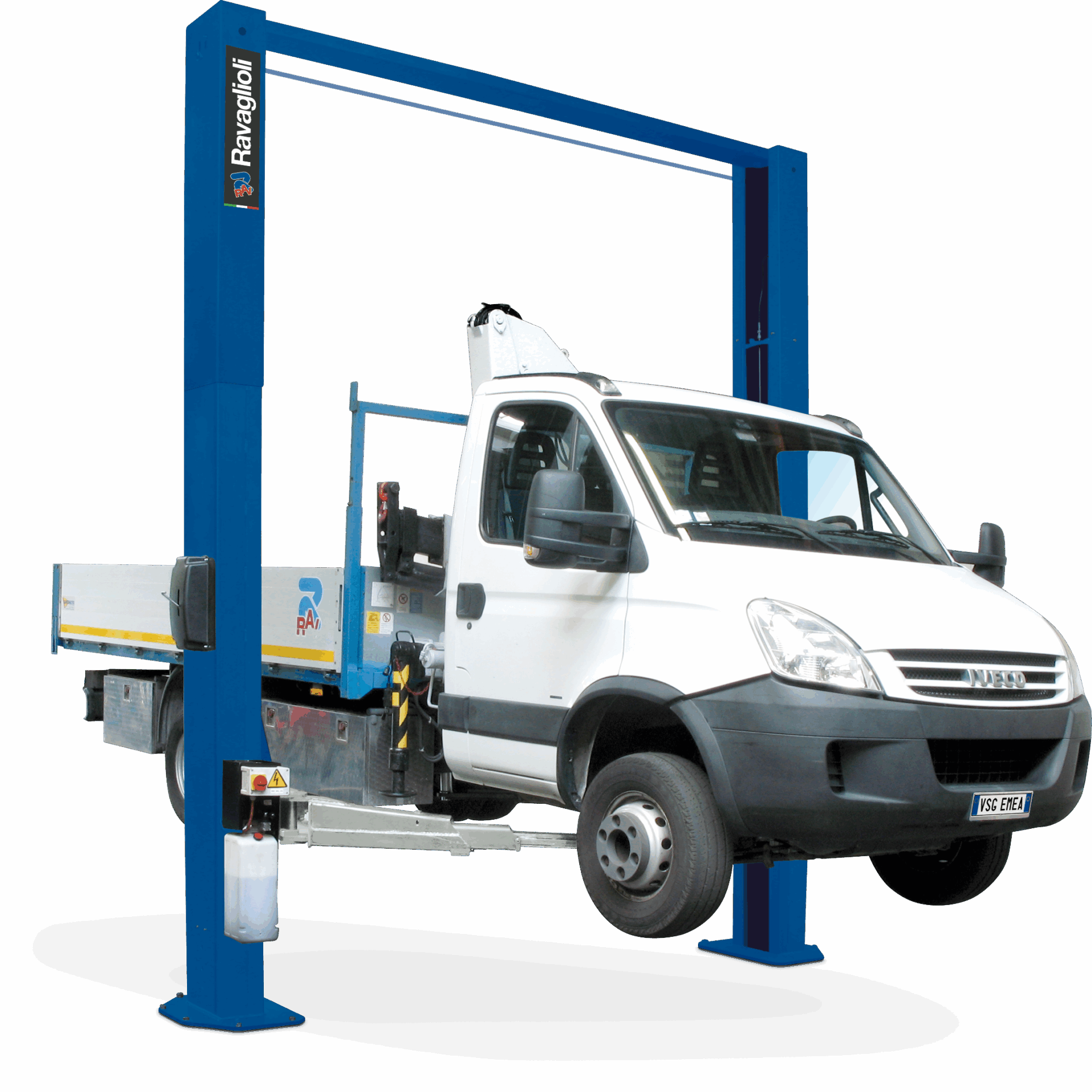

Model ideal to lift long wheel-base vans. Model equipped with two long 3-stage arms and two long 4-stage arms, to allow easy lifting of large cars.

  • Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position
  • Synchronization cables grant the levelling of the two carriages
  • Each column features a maintenance free lifting cylinder
  • Adjustable height: 5016 – 4816 – 4616 mm

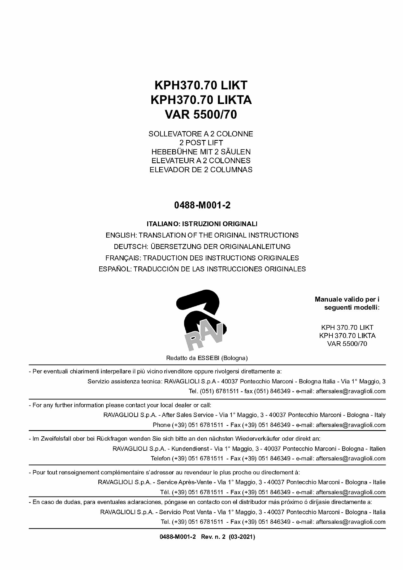

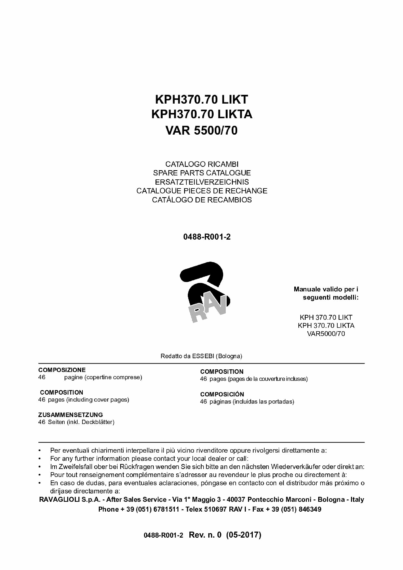

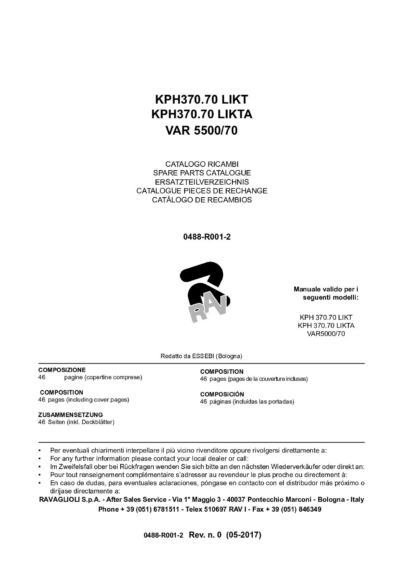

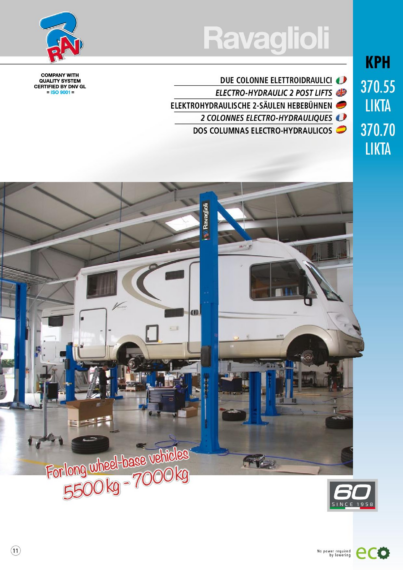

Media

Similar Products

Accessories

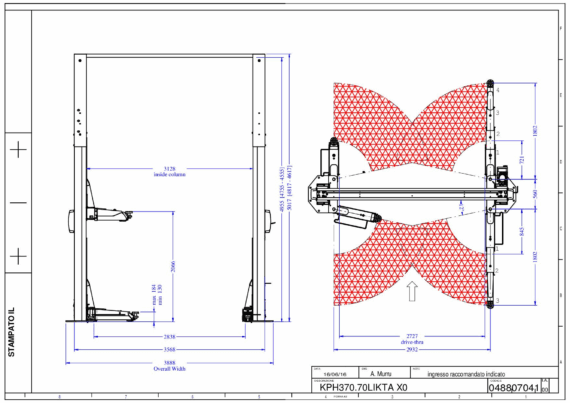

Tech Data

Features2-Post lift KPH370.70LIKTA2-Post lift KPH370.70LIKTA2-Post lift KPH370.55LIKTA2-Post lift KPH370.55LIKTA
Number of columns22
Mode of driveelectrohydraulicelectrohydraulic
Controlelectricelectric
Type of installationfloor mountedfloor mounted
Rated load capacity7000kg5500kg
Max. lifting height2066mm2046mm
Lifting time70s35s
Min. plate height130mm125mm
Max. plate heigh184mm176mm
Clear span between3128mm3000mm
Column height5016mm4850 – 4950mm
Drive-through width2727mm2680mm
Required ceiling height5120mm5050mm
Surface coatingPowder coatedPowder coated
Arm layoutasymmetricalasymmetrical
Telescopic front arms4-fold4-fold
Telescopic rear arms3-fold3-fold
Min. front arm length721mm733mm
Max. front arm length1802mm1800mm
Min. rear arm length845mm840mm
Max. rear arm length1802mm1800mm
Driving power3,5kW3,5kW
Power supply220 V | 60 Hz220 V | 60 Hz
Width3888mm3865mm
Height5017mm4950mm
Weight750kg750kg
