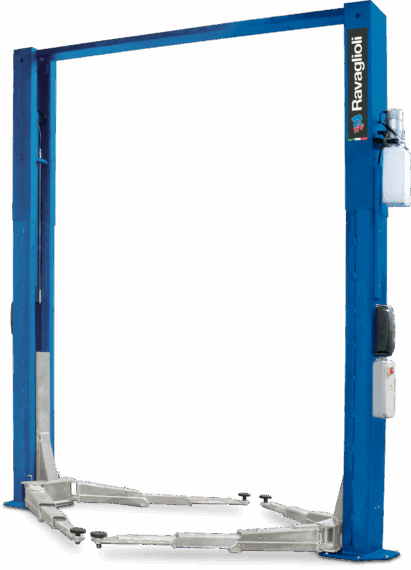

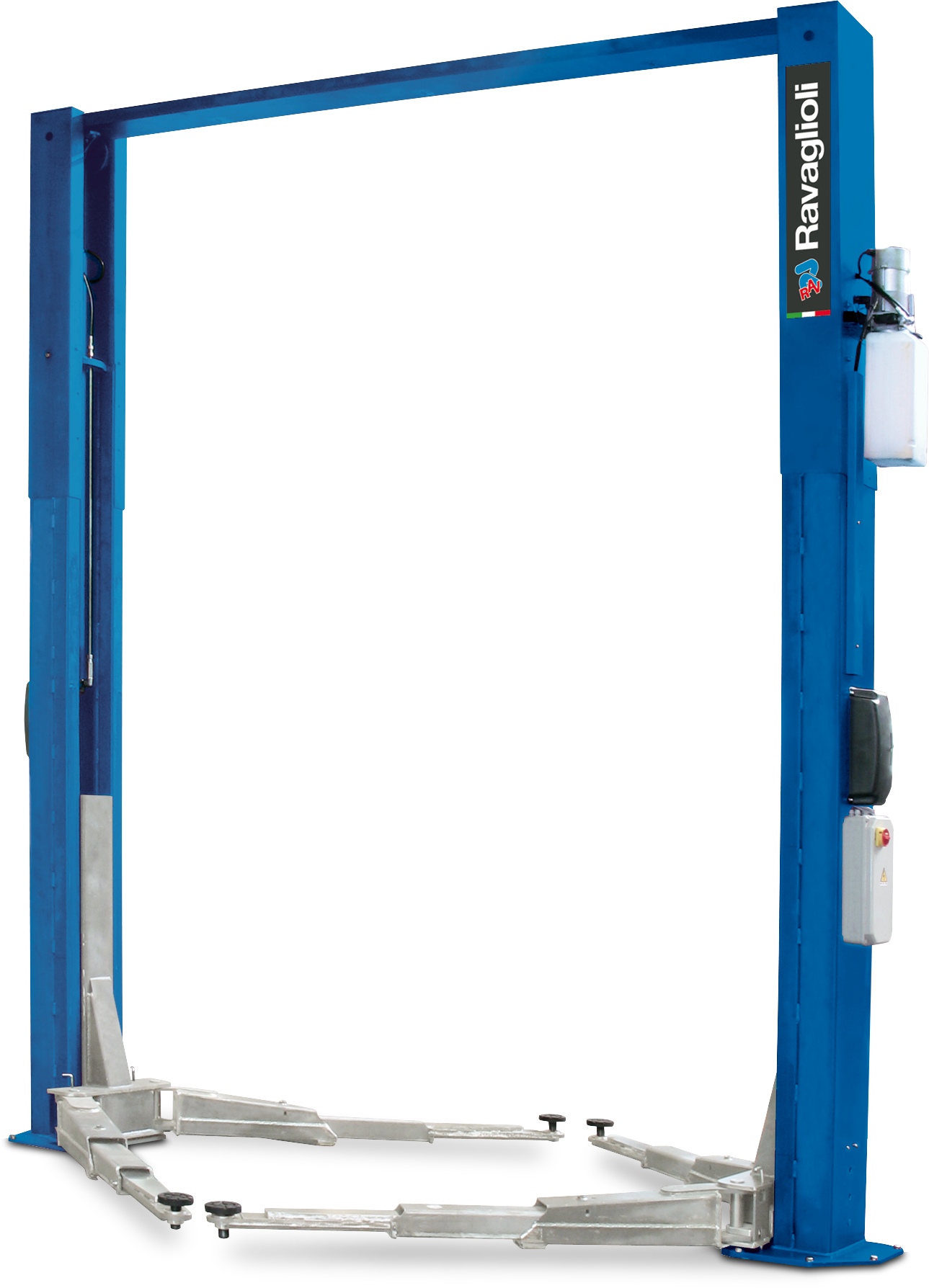

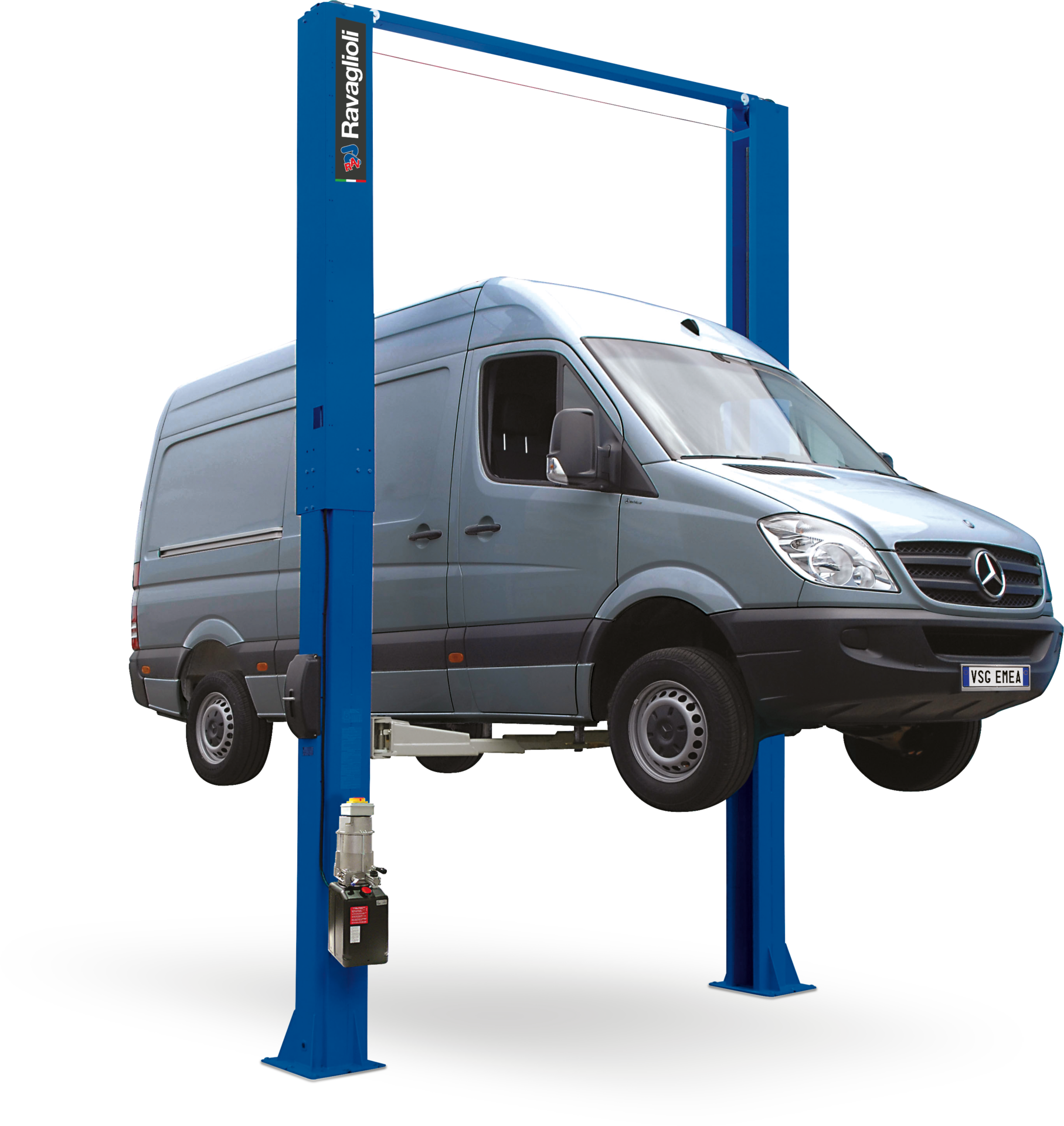

5.5 t, electrohydraulic, asymmetrical, supporting arms 4 x 3-piece

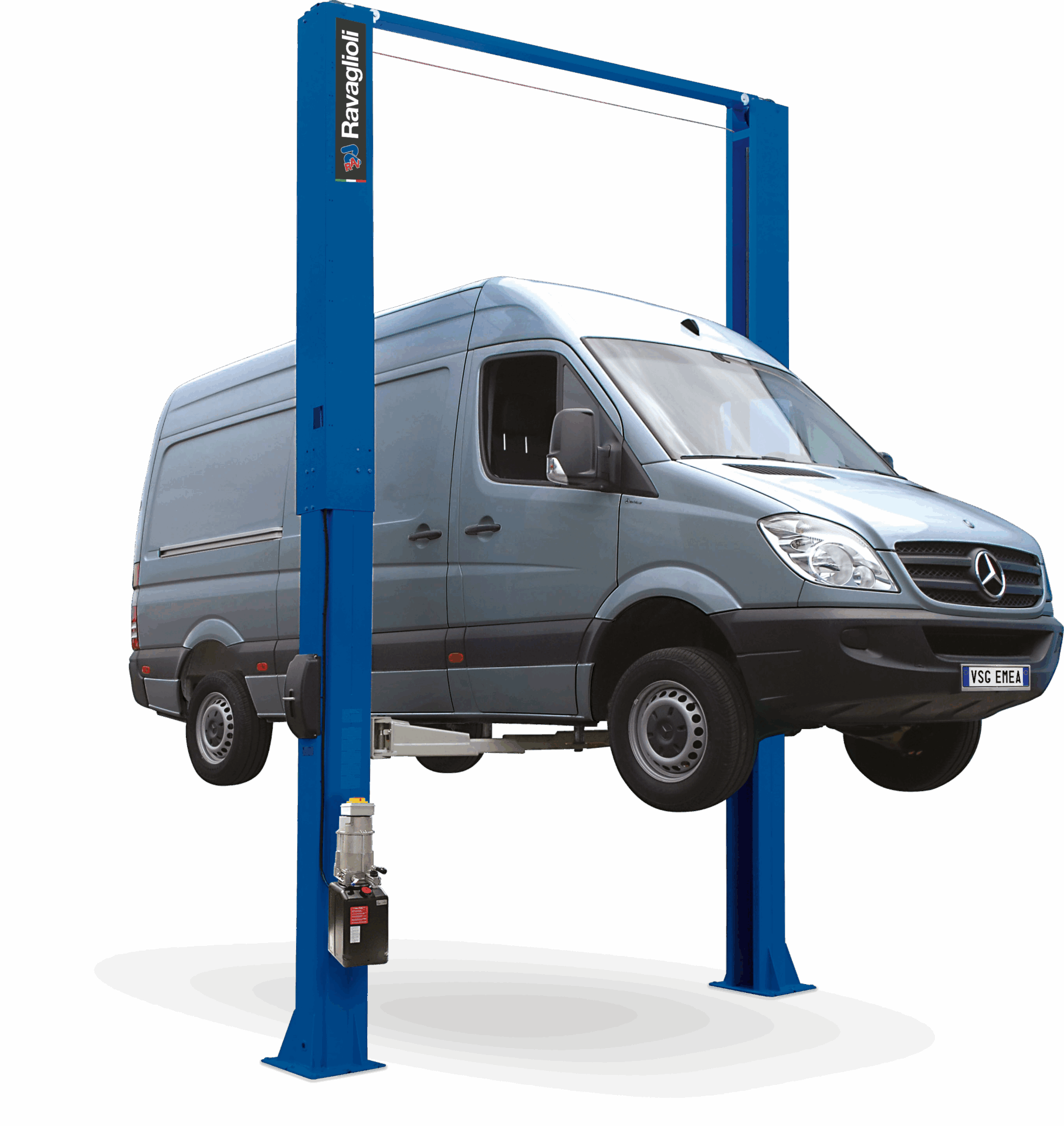

Model ideal to lift long wheel-base vans. Model equipped with two long 3-stage arms and two long 4-stage arms, to allow easy lifting of large cars.
7.0 t, electrohydraulic, asymmetrical, supporting arms 4 x 3-piece
Compressed air connection and 230 V socket | 1 piece
For Fiat Ducato, Peugeot Boxer and Citroën Jumper | bushing Ø 45 mm | 1 set / 4 pieces
Holding set, adjustable – 2 x rod-shaped supports, 2 x V-shaped supports | bushing Ø 45 mm | needed spacers…
For 2-post lifts | 1 set / 2 pieces
Supports for 2-post lifts | 1 set / 4 pieces
Plates to install baseless 2-post lifts on floor with poor capacity | Min. requirement: R’bk 200 withrnthickness 150 mm |…
For all lifts with 3-phase power supply

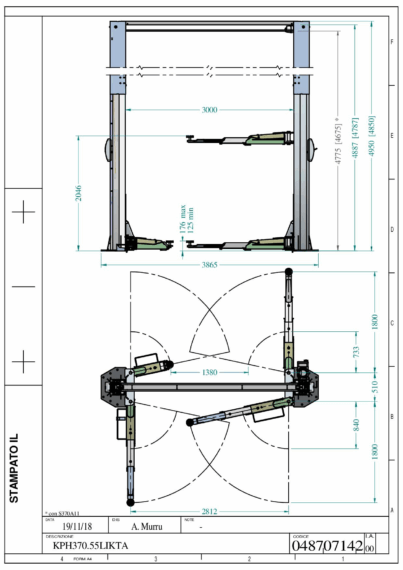

| Features |  2-Post lift KPH370.55LIKTA | 2-Post lift KPH370.70LIKTA |
|---|---|---|
| Number of columns | 2 | 2 |
| Mode of drive | electrohydraulic | electrohydraulic |
| Control | electric | electric |
| Type of installation | floor mounted | floor mounted |
| Rated load capacity | 5500kg | 7000kg |
| Max. lifting height | 2046mm | 2066mm |
| Lifting time | 35s | 70s |
| Min. plate height | 125mm | 130mm |
| Max. plate heigh | 176mm | 184mm |
| Clear span between | 3000mm | 3128mm |
| Column height | 4850 – 4950mm | 5016mm |
| Drive-through width | 2680mm | 2727mm |
| Required ceiling height | 5050mm | 5120mm |
| Surface coating | Powder coated | Powder coated |
| Arm layout | asymmetrical | asymmetrical |
| Telescopic front arms | 4-fold | 4-fold |
| Telescopic rear arms | 3-fold | 3-fold |
| Min. front arm length | 733mm | 721mm |
| Max. front arm length | 1800mm | 1802mm |
| Min. rear arm length | 840mm | 845mm |
| Max. rear arm length | 1800mm | 1802mm |
| Driving power | 3,5kW | 3,5kW |
| Power supply | 220 V | 60 Hz | 220 V | 60 Hz |
| Width | 3865mm | 3888mm |
| Height | 4950mm | 5017mm |
| Weight | 750kg | 750kg |
