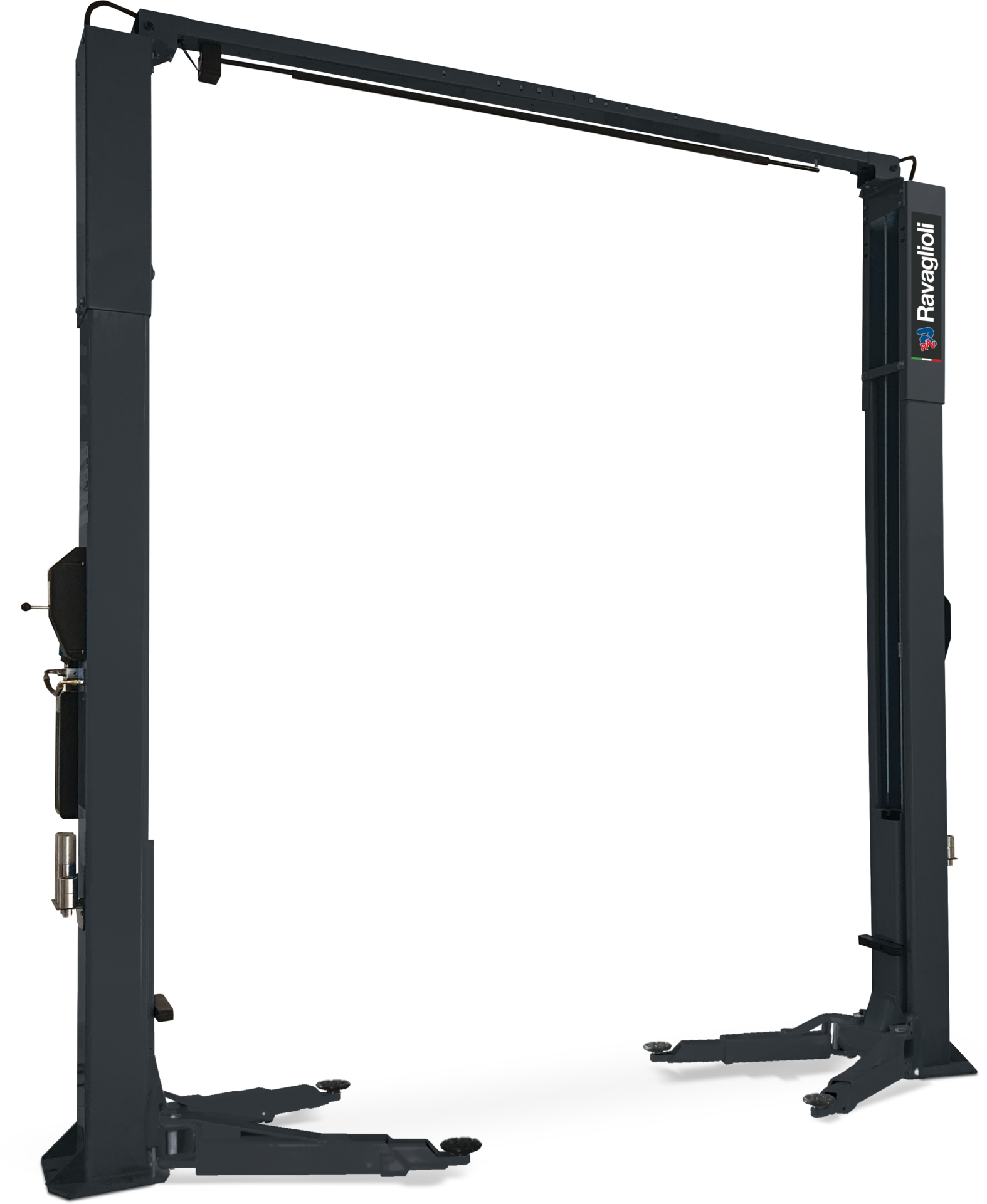

2-post lift KPH350.40

4.0 t, electrohydraulic, baseless, symmetrical posts, asymmetrical support arms | 3 x 400 V / 50 Hz

MPN: KPH350.40
Category:
Tags: ,

Share on:

dashicons-media-document

Description

Electrohydraulic 2-post lift without base, with asymmetric arms and symmetric posts that enable an easy access to the pick-up points of the vehicle.

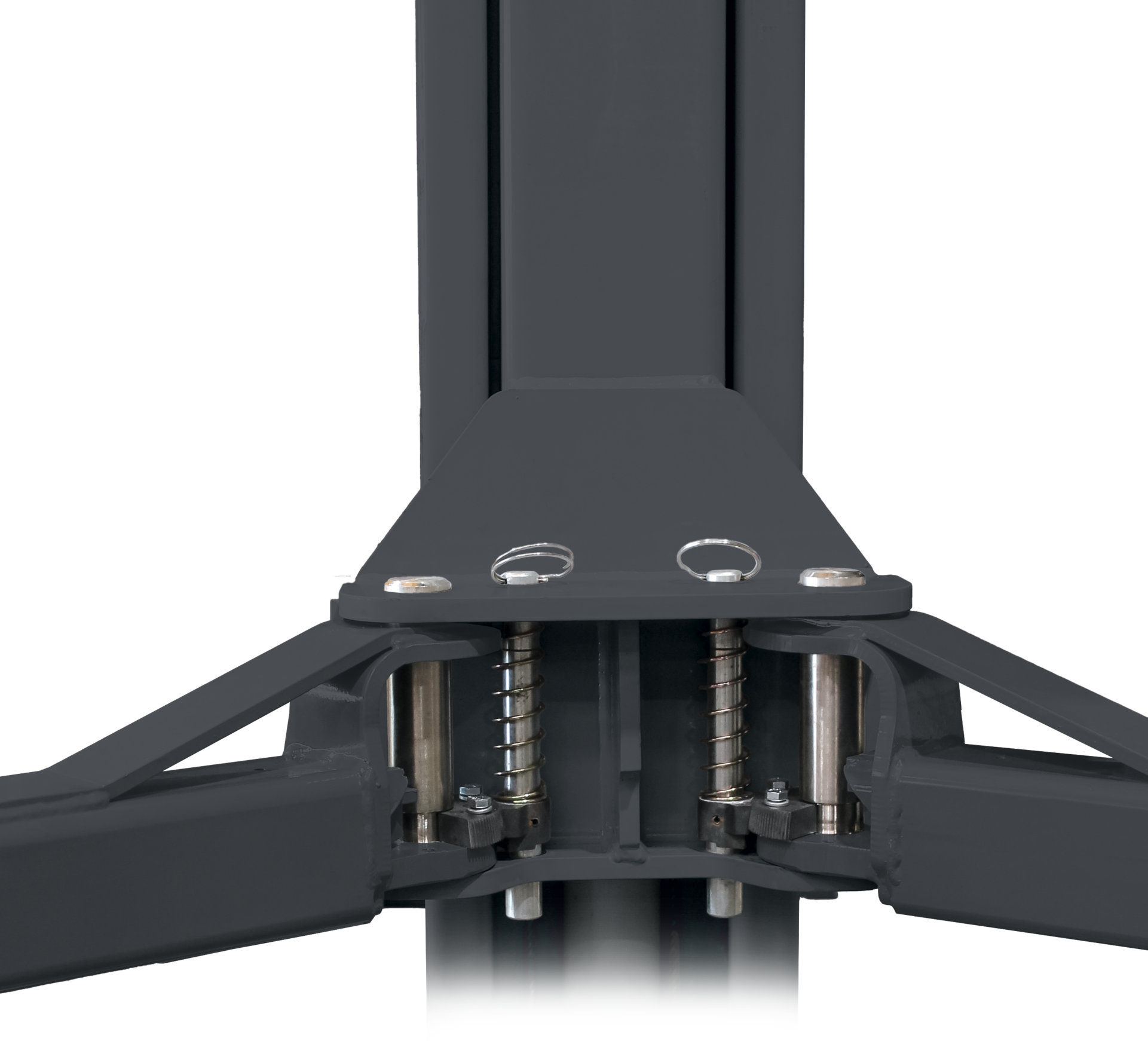

  • Arm safety locking with automatic engagement and automatic release when the arm reaches the floor.
  • Scope of delivery:
    • 5 mm spacers (extension of max. lifting height)
    • 2 support brackets for spacers
  • Powder coating for a longer lifetime
  • Shut-off bar to prevent damage caused by lifting high vehicles
  • Two pistons for intensive use designed to minimise down-time, by requiring little maintenance
  • Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position.
  • Manual release by lever
  • Capacity 4 t
  • Recommended for liftig cars and pickups

Media

Similar Products

Tech Data

Features2-post lift KPH350.402-post lift KPH350.402-post lift KPH370.32K2-post lift KPH370.32K2-post lift KPH370.45K2-post lift KPH370.45K2-post lift KPH370.45LIK2-post lift KPH370.45LIK
Number of columns2222
Mode of driveelectrohydraulicelectrohydraulicelectrohydraulicelectrohydraulic
Controlmanuallyelectricelectricelectric
Type of installationfloor mountedfloor mountedfloor mountedfloor mounted
Rated load capacity4000kg3200kg4500kg4500kg
Max. lifting height1863 | 1928mm1990mm2006mm2006mm
Lifting time54s33s43s43s
Min. plate height100mm90mm106mm100mm
Max. plate heigh136mm120mm135mm140mm
Clear span between2764mm2550mm2670mm2670mm
Column height4000mm2875mm2875mm2875mm
Drive-through width2506mm2280mm2384mm2399mm
Required ceiling height3850mm4242mm4242mm4242mm
Surface coatingPowder coatedPowder coatedPowder coatedPowder coated
Arm layoutasymmetricalasymmetricalasymmetricalsymmetrical
Telescopic front arms2-fold3-fold3-fold3-fold
Telescopic rear arms2-fold2-fold2-fold3-fold
Min. front arm length715mm500mm510mm722mm
Max. front arm length1051mm900mm975mm1436mm
Min. rear arm length775mm800mm847mm722mm
Max. rear arm length1138mm1198mm1235mm1436mm
Driving power2,2kW2,6kW2,6kW2,6kW
Electrical connection400 V | 50 Hz230/400 V | 50 Hz230/400 V | 50 Hz230/400 V | 50 Hz
Phases3
Width3334mm3305mm3406mm3406mm
Height4000mm4162mm4162mm4162mm
Weight725kg750kg750kg750kg
