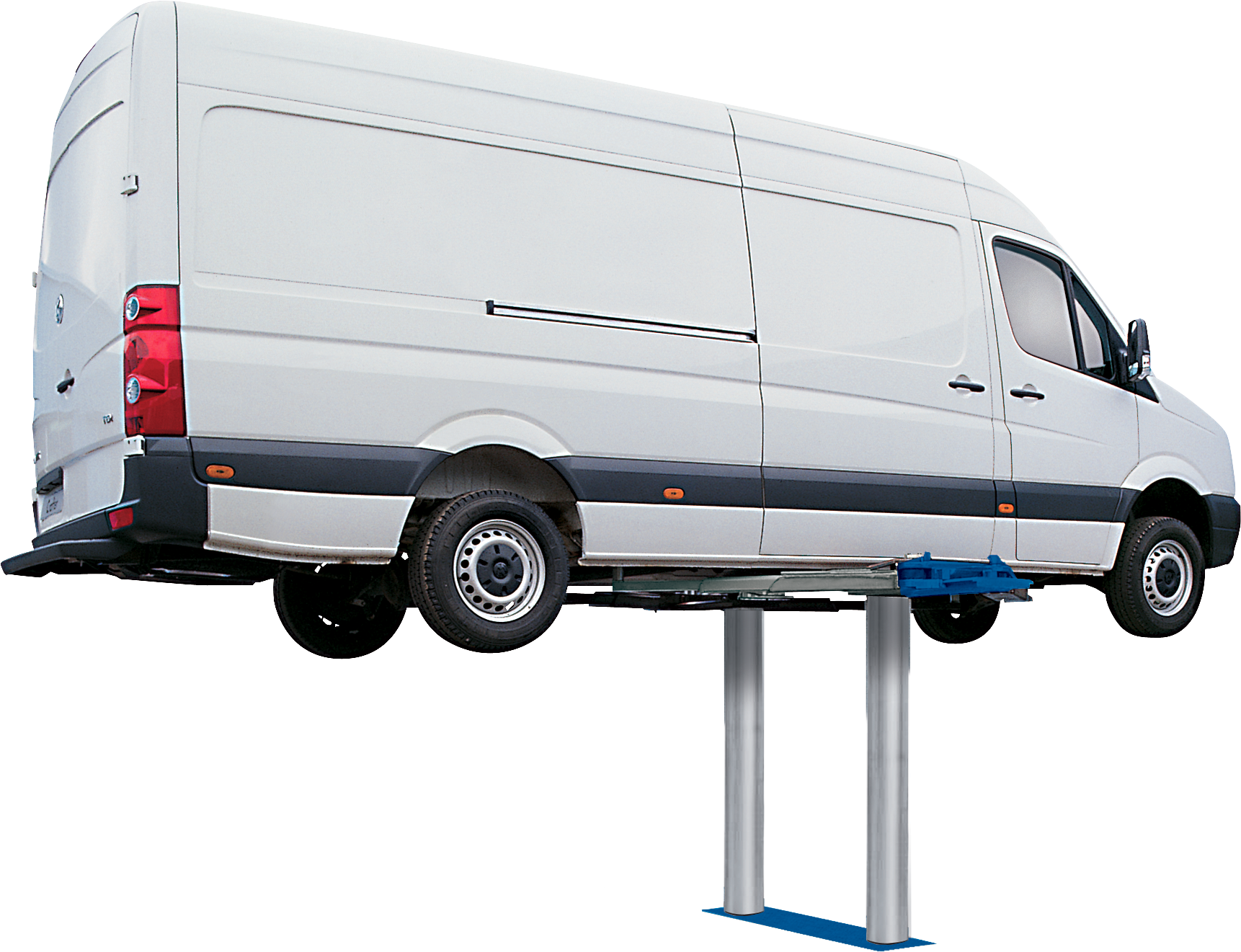

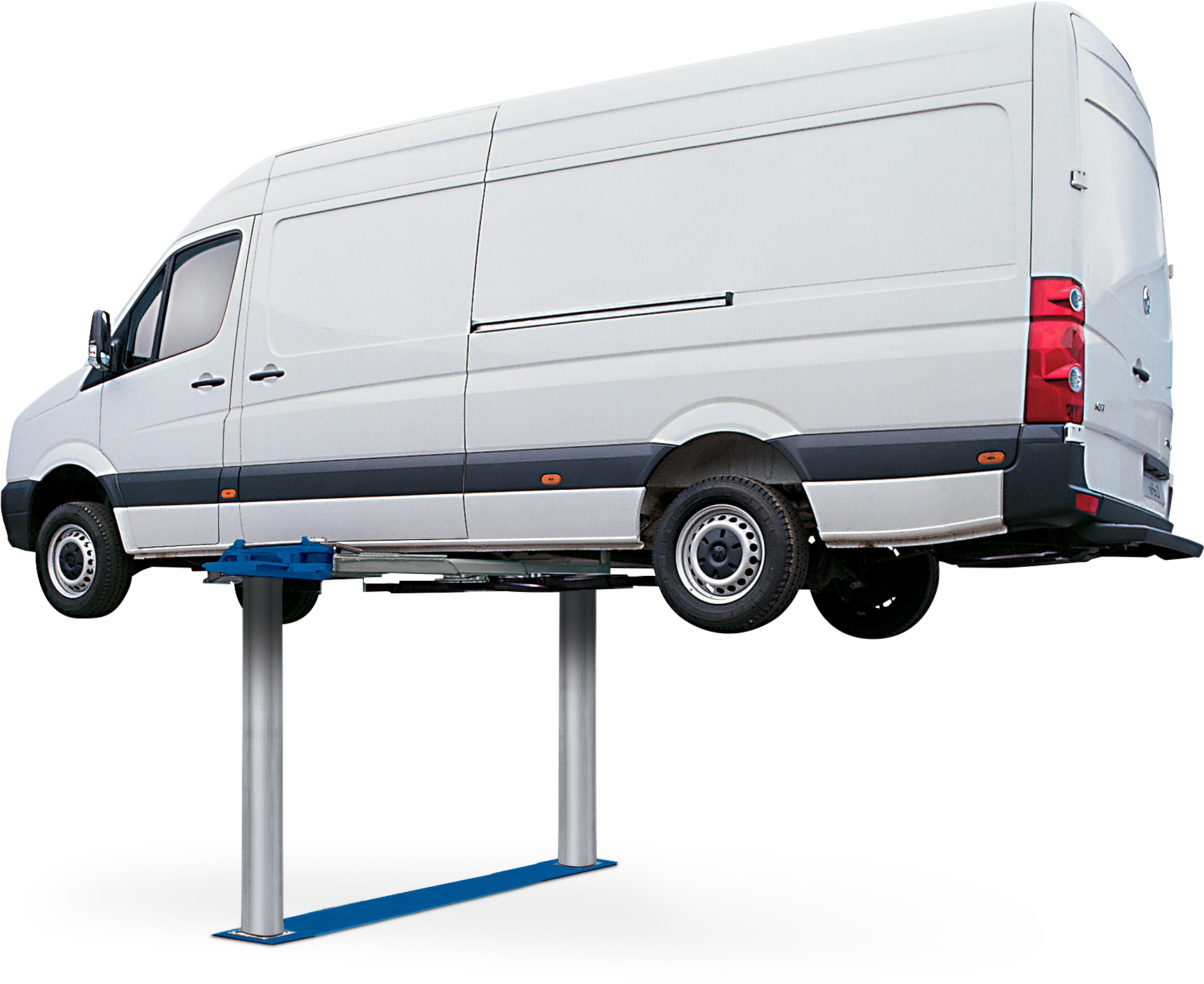

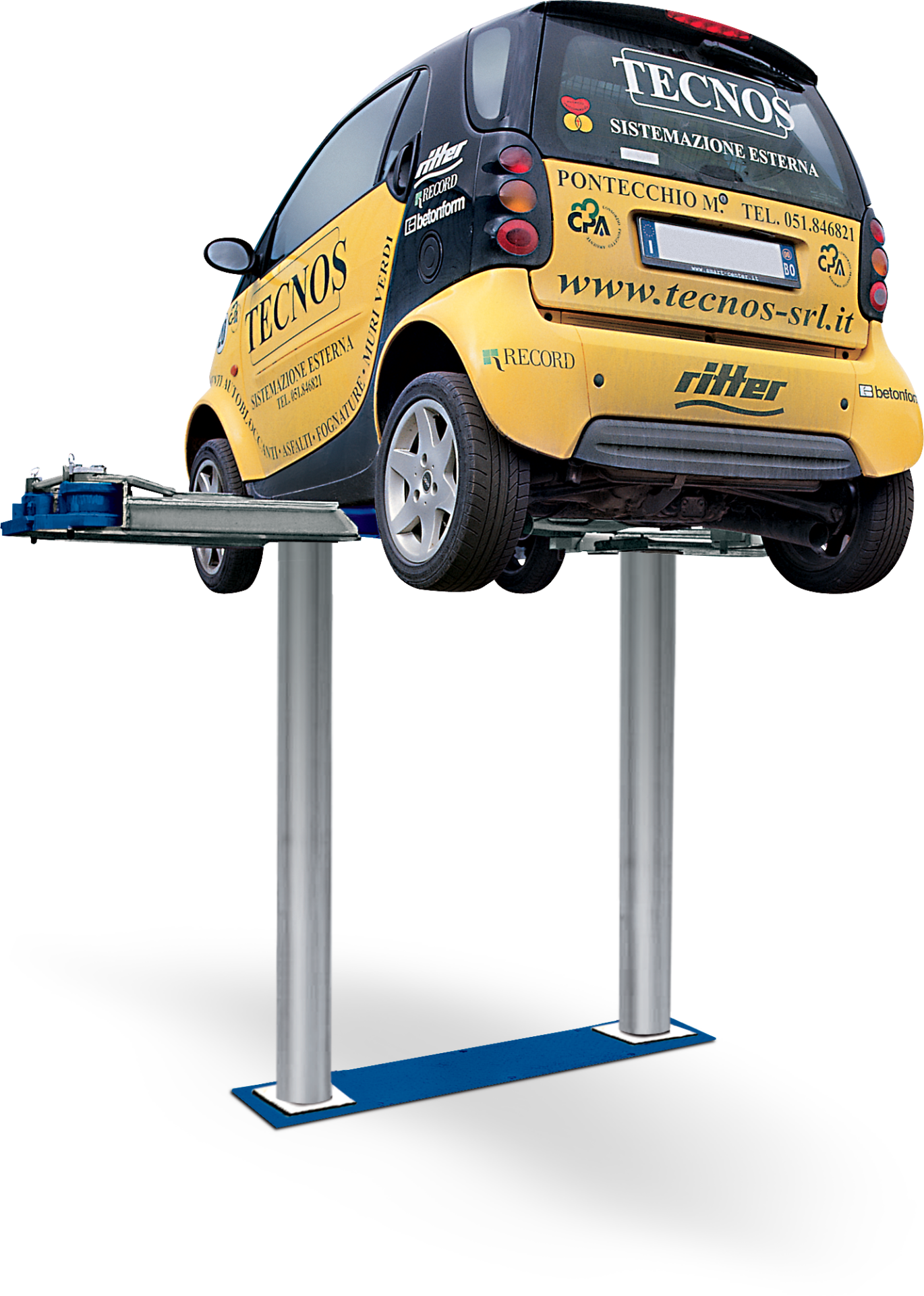

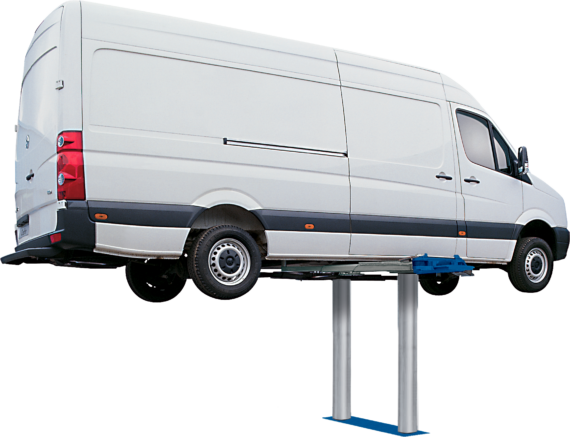

2-Cylinder Inground Lift RAV1155LIKTA

5.5 t, for cars and vans – also with long wheelbase, with two 2-fold and two 3-fold extendable long arms

Description

  • Perfect synchronization between cylinders regardless of load distribution.
  • Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture.
  • Self-controlled lowering speed.
  • All mechanical, hydraulic and electrical components manufactured in compliance with the respective European Safety Standard.
  • Maintenance free cylinders: Each column features a maintenance-free lifting cylinder
  • Double joint: Cross bar with double joint to eliminate vibrations
  • Safe – Mechanical lock: Mechanical safety latch with automatic engagement, ensuring maximum safety when lift is in standing position.
  • Hard chrome columns: Hard chrome columns grant long life
  • Maintenance free guides: Columns guides in oil bath, maintenance free
  • Waterproof inground metal frame
  • Lift for cars and vans, also with long wheel-base
  • Models equipped with two long 3-stage arms and two long 4-stage arms, to allow easy lifting of
    large cars
  • Clearance of 2160 mm between the columns

Additional information

Number of rams

2

Inground lift design

Swivel arm

Type of installation

Surface mounted

Capacity

5500kg

Max. lifting height

2019mm

Plunger diameter

210mm

Column distance

2160mm

Wheel alignment

Not possible

Arm layout

Symmetrical

Telescopic front arms

2-fold

Telescopic rear arms

3-fold

Min. front arm length

840

Max. front arm length

1800mm

Min. rear arm length

713mm

Max. rear arm length

1800mm

Bottom clearance

120mm

Width

3310mm

Installation depth

2496mm
