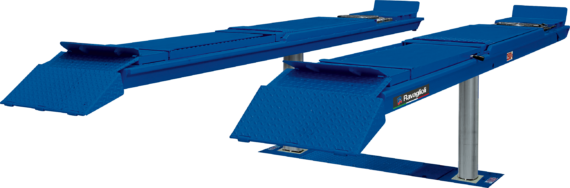

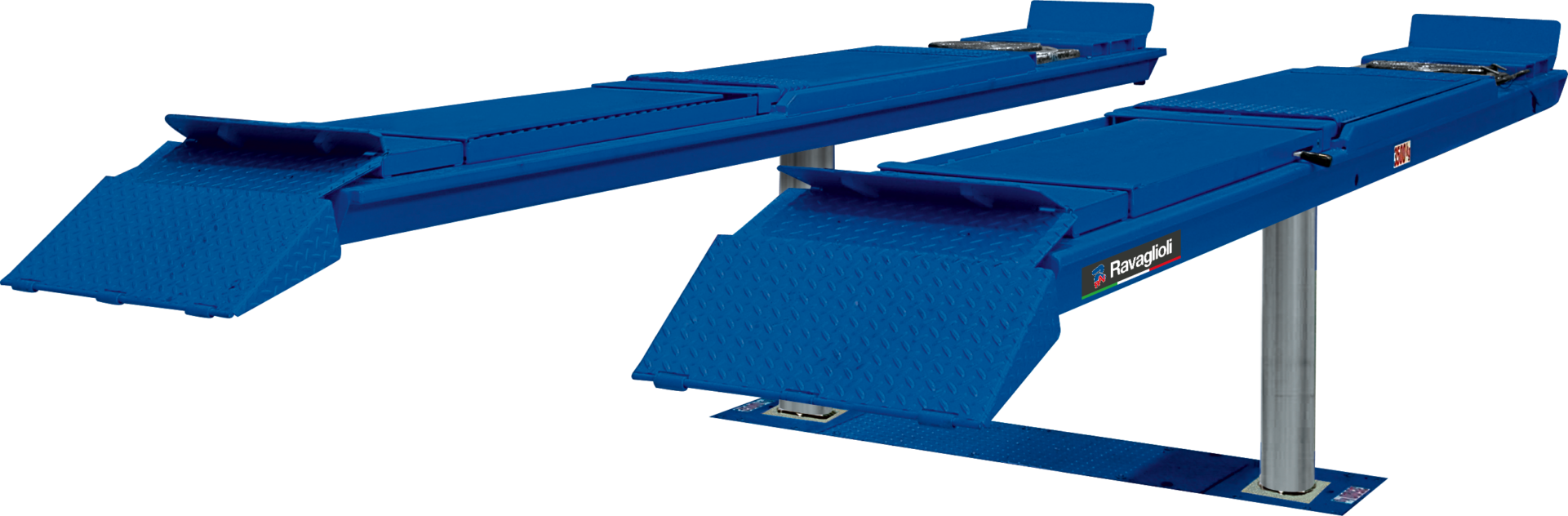

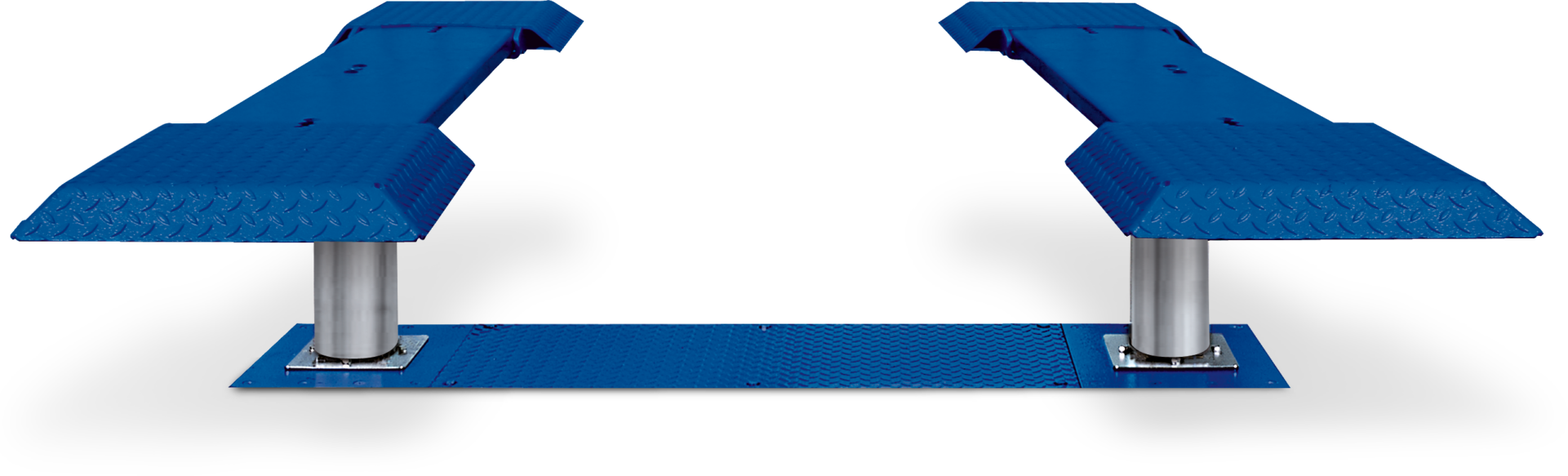

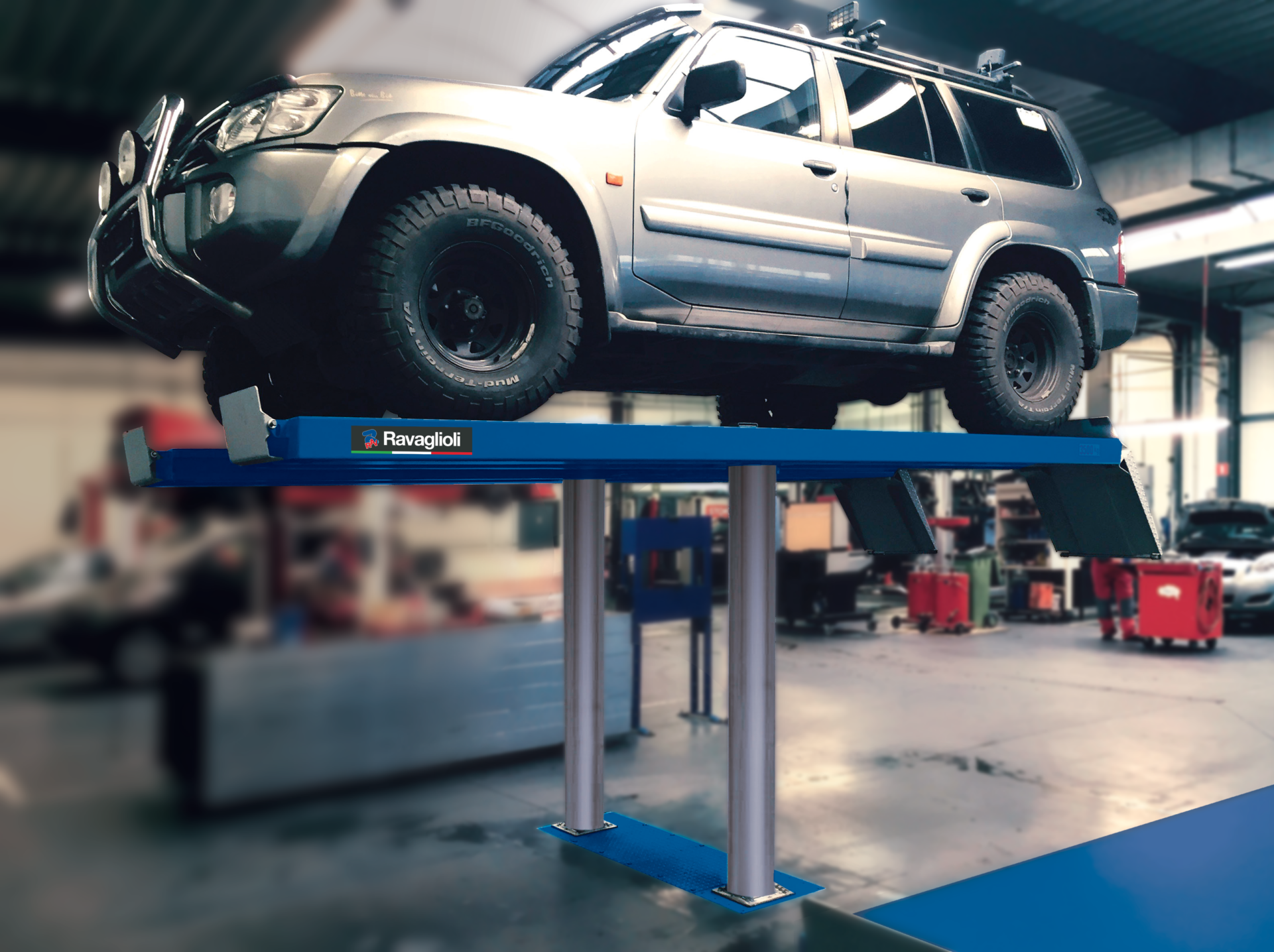

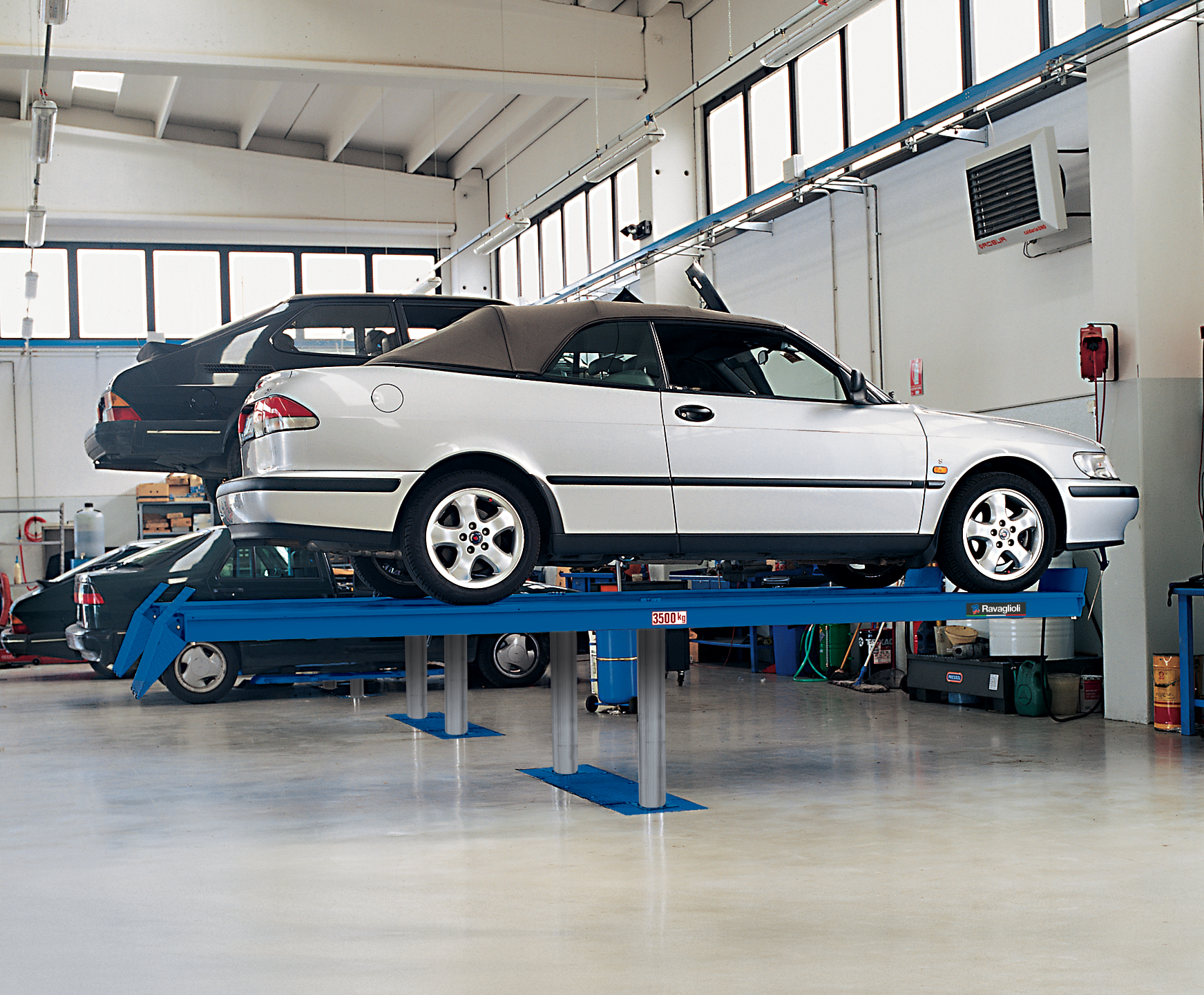

2-Cylinder Inground Lift RAV1125

3.5 t, with flat beam support, extendable in the direction of travel

Description

  • Perfect synchronization between cylinders regardless of load distribution.
  • Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture.
  • Self-controlled lowering speed.
  • All mechanical, hydraulic and electrical components manufactured in compliance with the respective European Safety Standard.

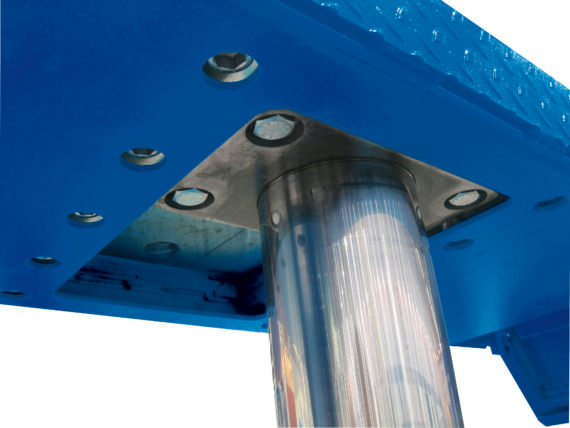

  • Maintenance free cylinders: Each column features a maintenance-free lifting cylinder
  • Double joint: Cross bar with double joint to eliminate vibrations
  • Safe – Mechanical lock: Mechanical safety latch with automatic engagement, ensuring maximum safety when lift is in standing position.

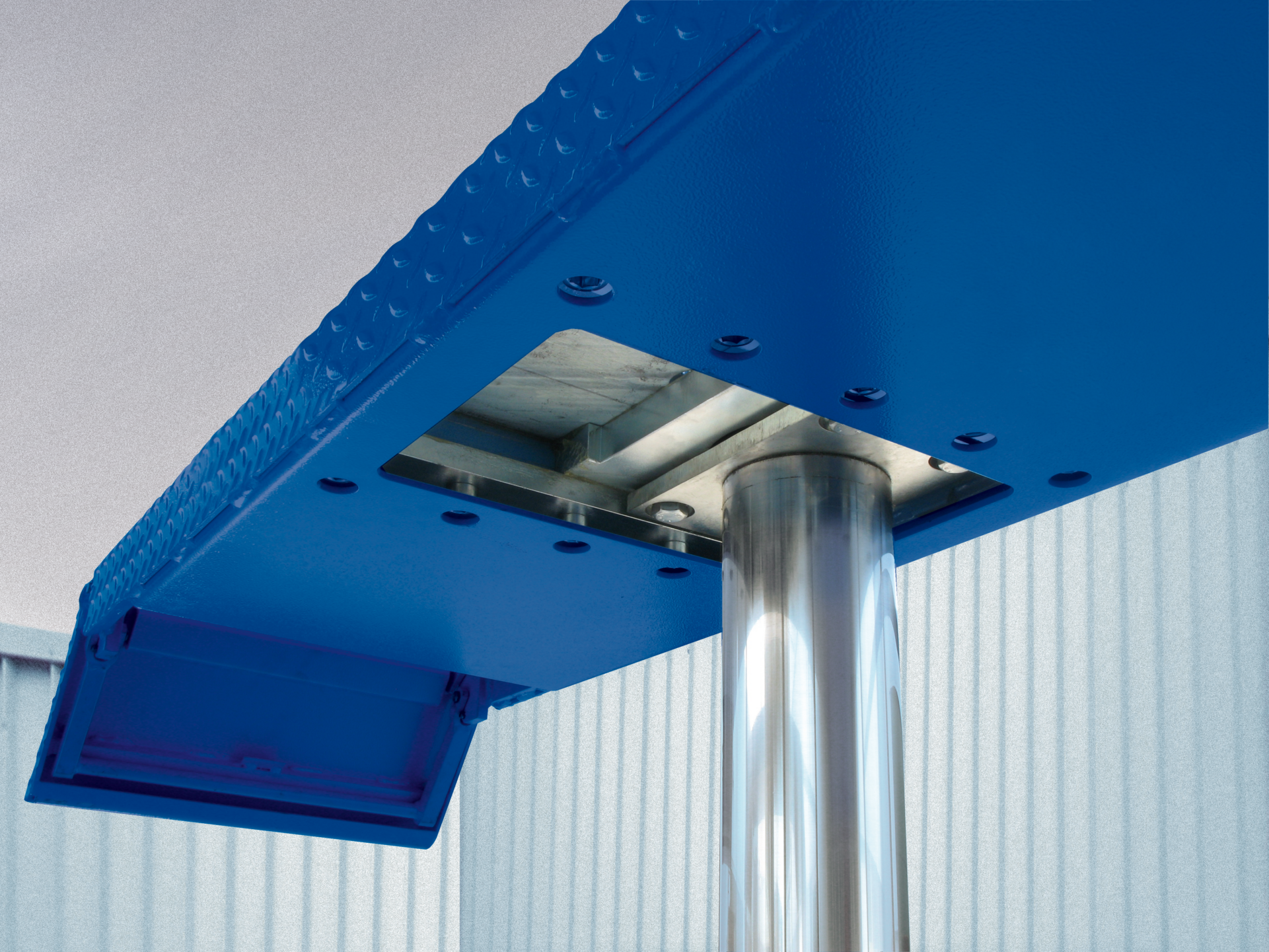

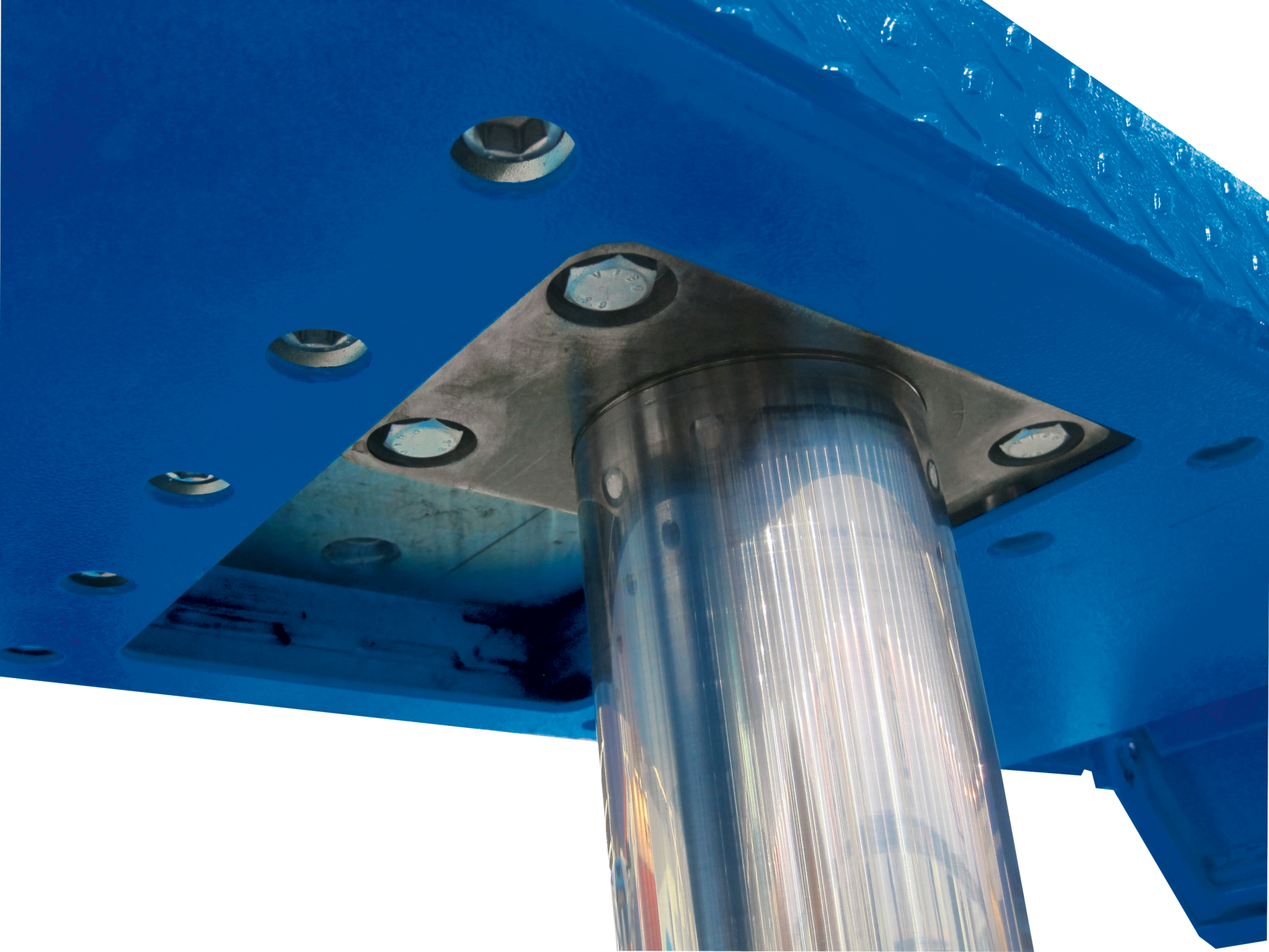

  • Hard chrome columns: Hard chrome columns grant long life
  • Maintenance free guides: Columns guides in oil bath, maintenance free
  • Waterproof inground frame: steel frame and plastic cover

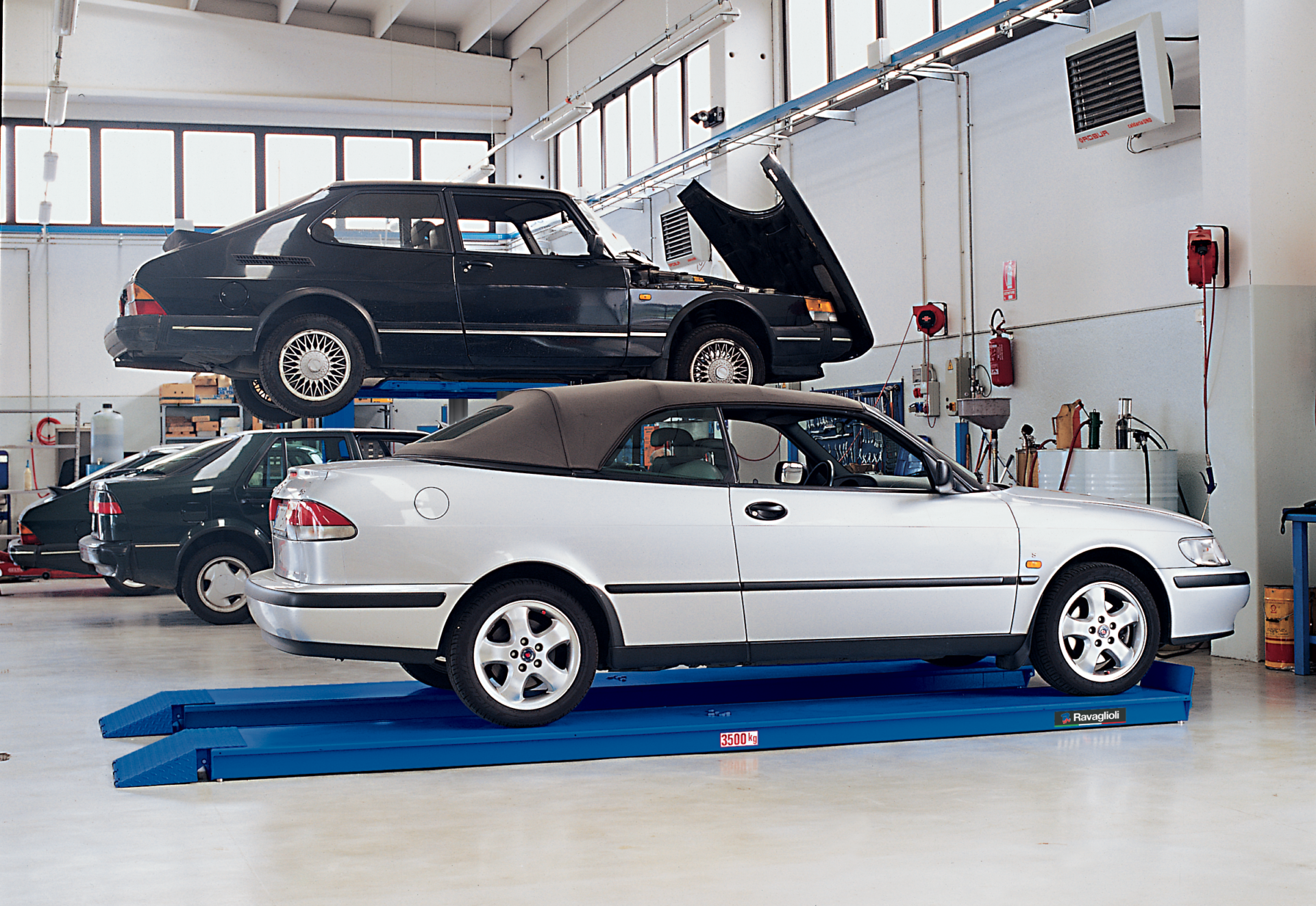

  • Lift with extra-low platforms: only 60 mm

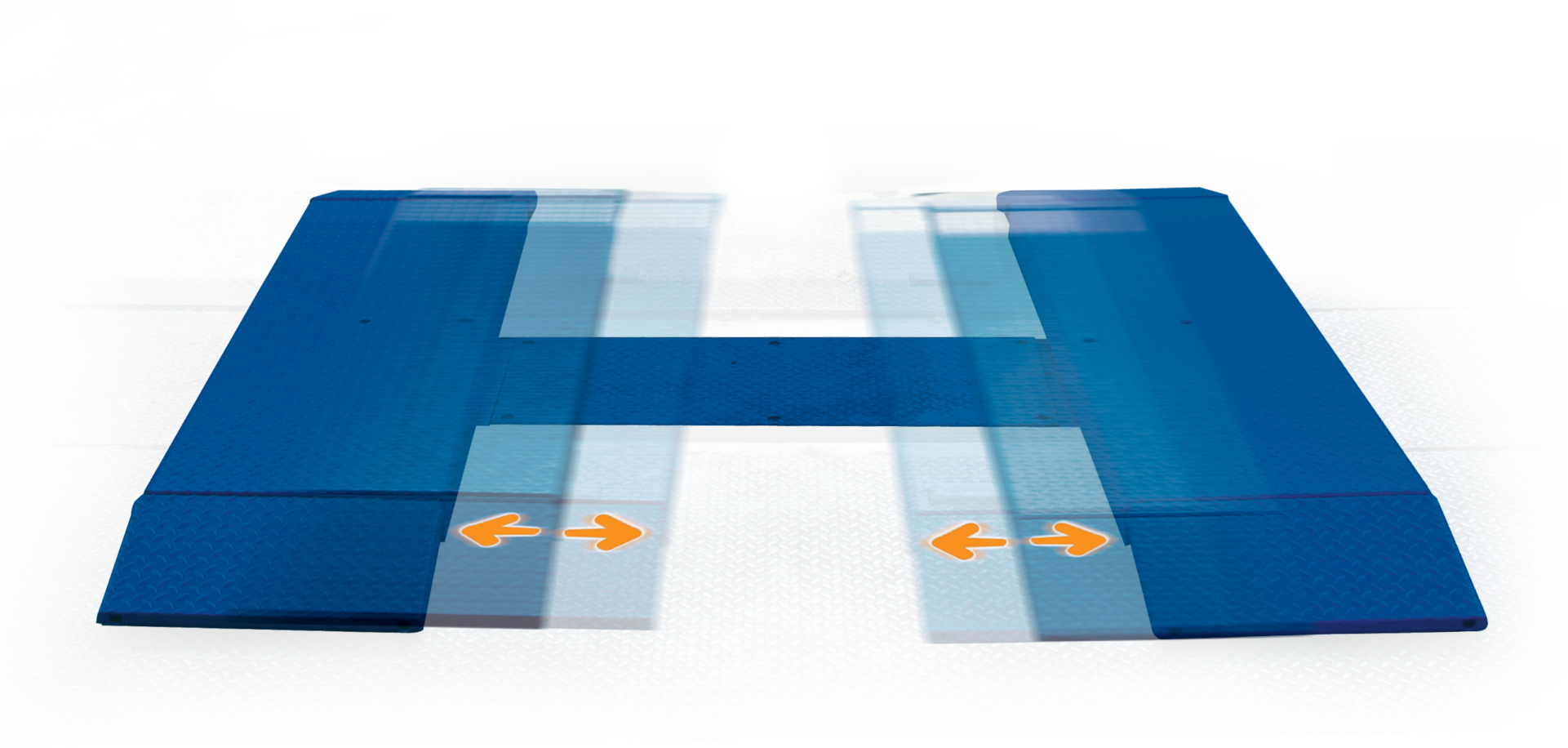

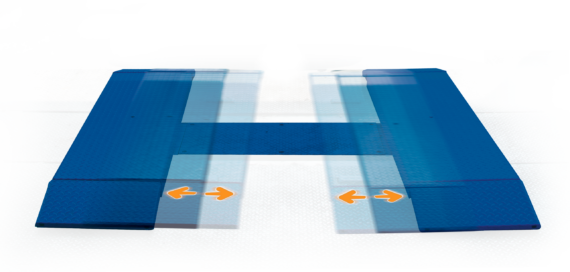

  • Platforms can be adjusted in length

Additional information

Number of rams

2

Inground lift design

Flat beam

Type of installation

Surface mounted

Capacity

3500kg

Max. lifting height

1990mm

Plunger diameter

120mm

Column distance

1340mm

Wheel alignment

Not possible

Length

1990mm

Width

1620mm

Foundation – length

1670mm

Foundation – width

295mm
