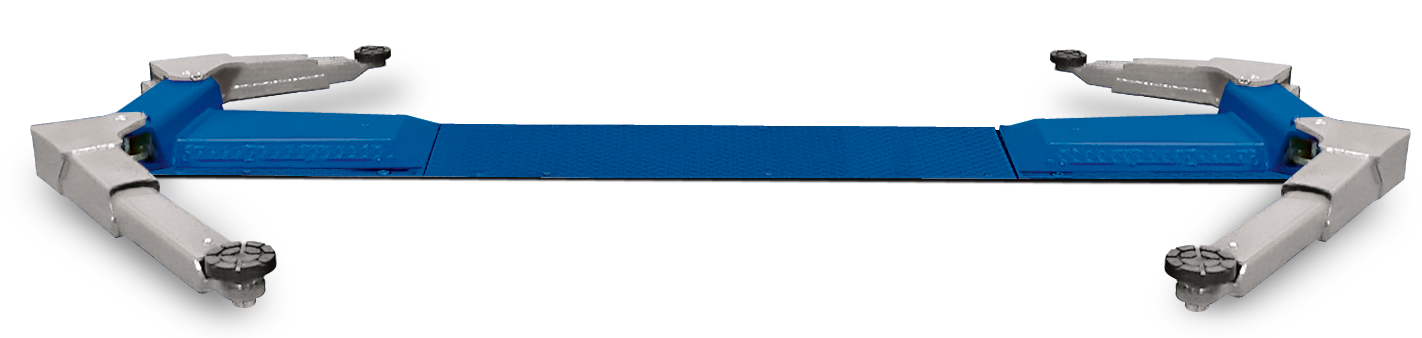

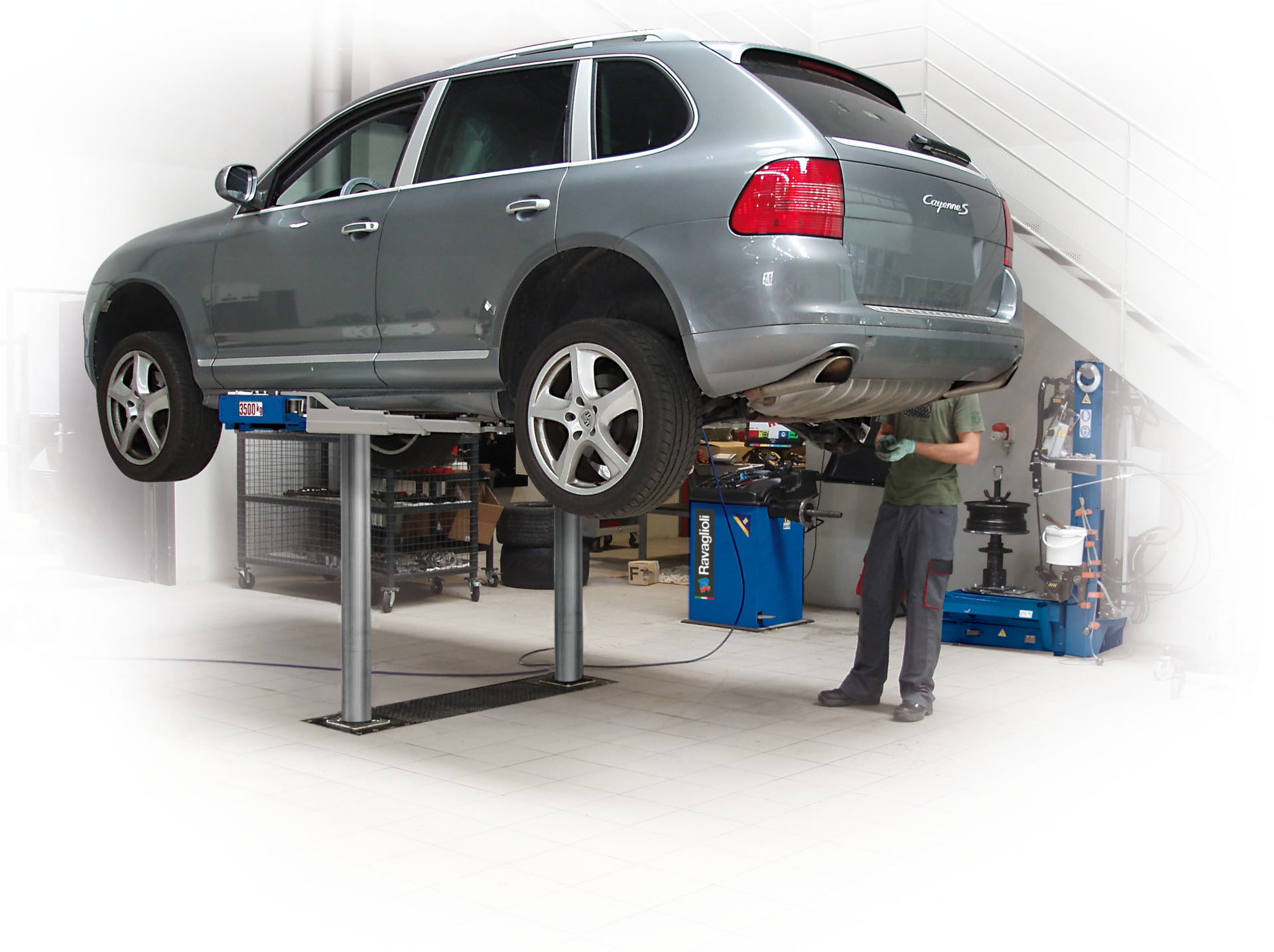

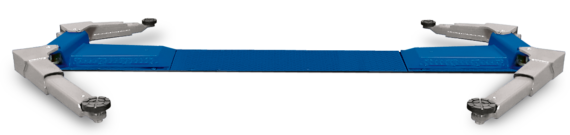

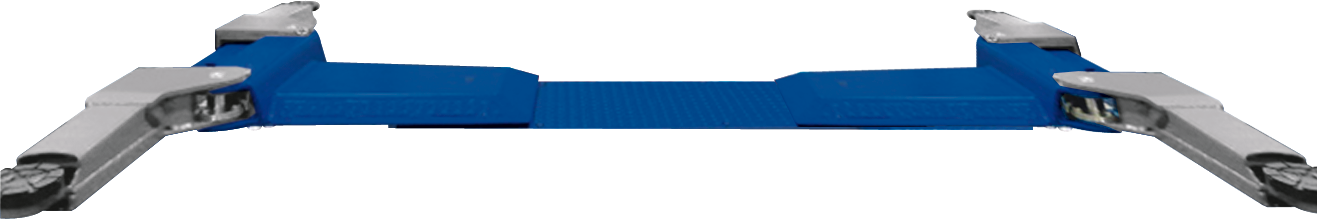

2-Cylinder Inground Lift RAV1110NK

3.5 t, with swivel arms and height-adjustable turntable plug-in system, lower swing height 95 mm

MPN: RAV1110NK
Category:
Tags:

Share on:

dashicons-media-document

Description

  • Perfect synchronization between cylinders regardless of load distribution.
  • Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture.
  • Self-controlled lowering speed.
  • All mechanical, hydraulic and electrical components manufactured in compliance with the respective European Safety Standard.
  • Maintenance free cylinders: Each column features a maintenance-free lifting cylinder
  • Double joint: Cross bar with double joint to eliminate vibrations
  • Safe – Mechanical lock: Mechanical safety latch with automatic engagement, ensuring maximum safety when lift is in standing position.
  • Hard chrome columns: Hard chrome columns grant long life
  • Maintenance free guides: Columns guides in oil bath, maintenance free
  • Waterproof inground frame: steel frame and plastic cover

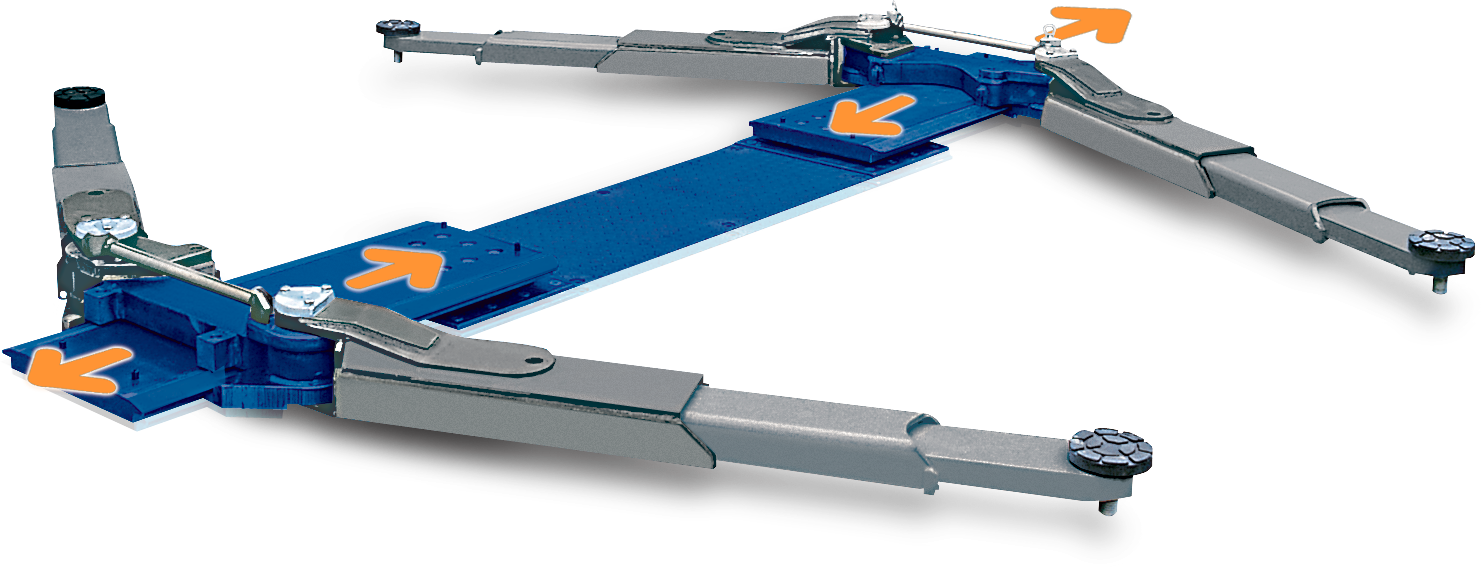

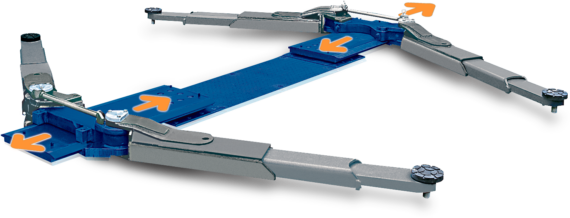

  • Pads can be adjusted in height and are suitable for quick housing of extensions
  • Min. pad height 95 mm
  • Vehicle access completely free
  • Extra low profile arms, parallel to the floor
